Cutler-Hammer Series AN59AN0T5E005

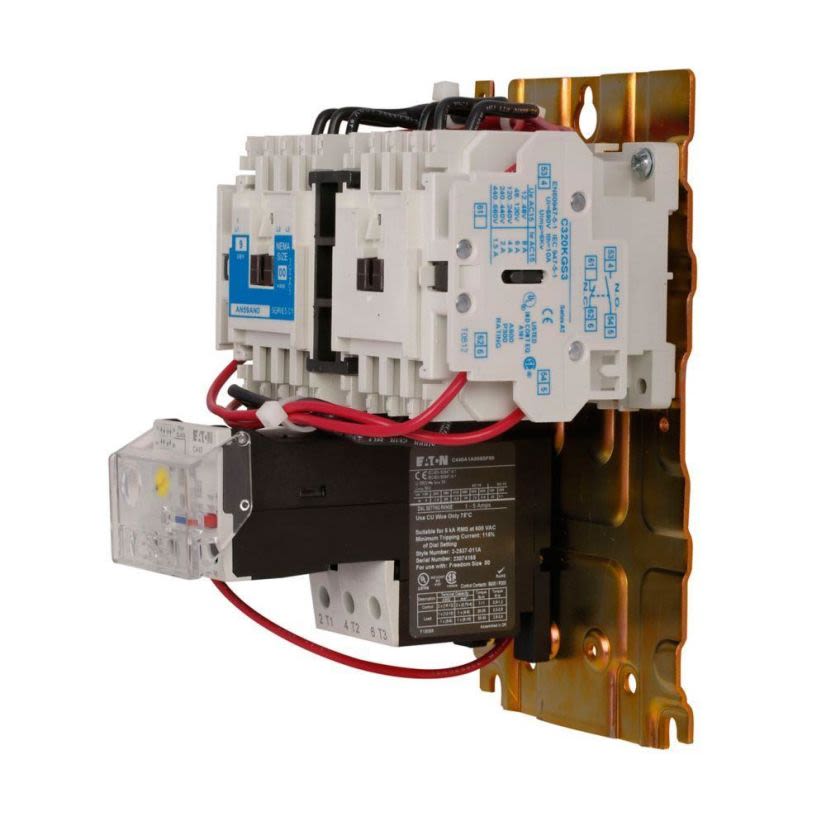

EATON AN59AN0T5E005 Type AN59 Freedom Full Voltage Magnetic Reversing NEMA Starter With C440 EOLR Standard Feature Set, SEL Reset, SEL Class (10a, 10, 20, 30), 24 VAC V Coil, 3 Poles, Open Enclosure
Cutler-Hammer Series AN59AN0T5E005
EATON AN59AN0T5E005 Type AN59 Freedom Full Voltage Magnetic Reversing NEMA Starter With C440 EOLR Standard Feature Set, SEL Reset, SEL Class (10a, 10, 20, 30), 24 VAC V Coil, 3 Poles, Open EnclosureNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
EATON NEMA Starter, Full Voltage Magnetic Reversing, Series: Type AN59 Freedom, 600 V AC, 9 A, 50/60 Hz, 2 hp Motor, 24 VAC Coil, 3 Pole, Setting: 1 to 5 A, Automatic/Manual Reset, 1/3 ph, Line/Load Lug, C440 Standard Electronic Overload Relay, 1NO Auxiliary, Open, 8.08 x 7 x 17.81 in
Attributes
Documents
Applications
Features
Specifications
Warranty
Attributes
Coil Voltage24 V AC
Connection TypeLine/Load Lug
Country of OriginDO
Dimensions8.08 x 7 x 17.81 in
Enclosure TypeOpen
Frequency Rating50/60 Hz
ManufacturerEaton
Number of Poles3
Phase1/3
SeriesType AN59 Freedom
Applications
Electrical Assemblies, Panels and OEMs Applications
Features
- Reliable, accurate, electronic motor protection
- Easy to select, install and maintain
- Compact size
- Flexible, intelligent design
- 1/3 hp at 115 VAC 1 ph, 1 hp at 230 VAC 1 ph, 1-1/2 hp at 208/240 VAC 3 ph, 2 hp at 480/600 VAC 3 ph horsepower rating
Specifications
- ATEX 94/9/EC
- CE Certified
- CSA Certified
- Equipment Group 2/Category 2
- IEC/EN 60947
- RoHS Compliant
- UL Listed
- VDE 0660
Warranty
1 year
