Cutler-Hammer Series 5S1000LCD

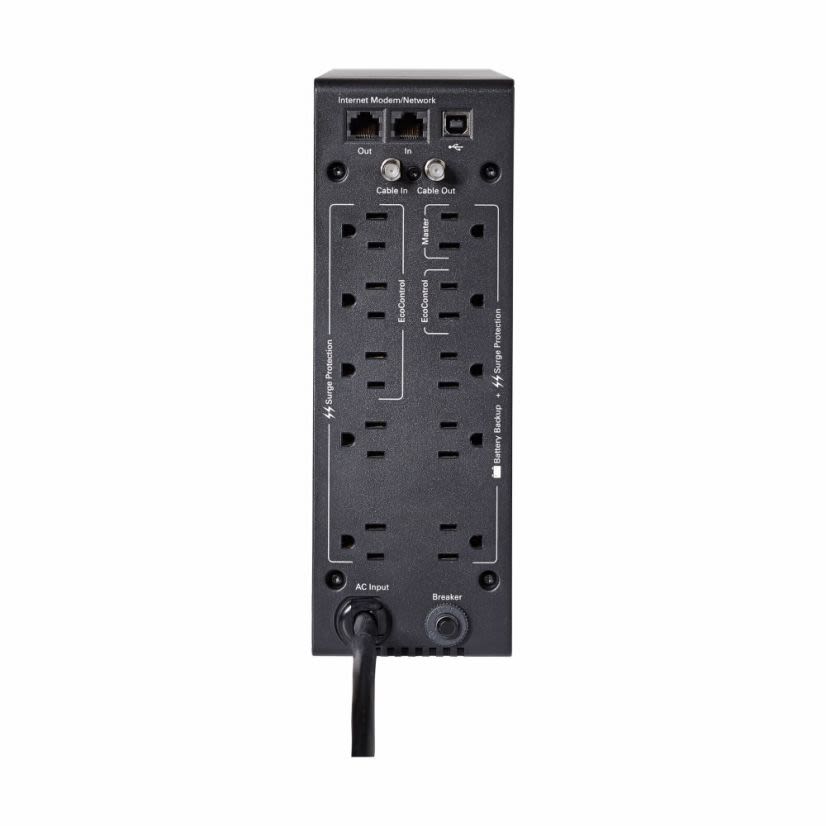

EATON 5S1000LCD Uninterruptible Power Supply, 93 to 138 V AC Input, 100/120/127 VAC Output, 1.4 kW Power Rating
Cutler-Hammer Series 5S1000LCD
EATON 5S1000LCD Uninterruptible Power Supply, 93 to 138 V AC Input, 100/120/127 VAC Output, 1.4 kW Power RatingNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #5S1000LCD
Werner Part #4045769
UPC743172043559
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #5S1000LCD
Werner Part #4045769
UPC743172043559
Product Description
EATON Uninterruptible Power Supply, Series: 5S, 93 to 138 V AC Input, 100/120/127 VAC Output, 1.4 kW Power, 47 to 70/57 to 70 Hz Frequency, 1 ph, NEMA 5-15P Plug Configuration, NEMA 5-15R Receptacle Configuration, 6 ft Cord Length, LCD Display, Tower Mounting, LCD Display Interface, Valve Regulated Lead Acid Battery, Environmental Conditions: 0 to 35 deg C Operating Temperature, -15 to 40 deg C Storage Temperature, 0 to 90% Non-Condensing Relative Humidity, <25 dB Audible Noise, 8.5 in L x 18.6 in W x 14.2 in H Dimensions
Attributes
Documents
Applications
Included
Features
Attributes
BatteryValve Regulated Lead Acid
Cord Length6 ft
Country of OriginSri Lanka
Dimensions8.5 in L x 18.6 in W x 14.2 in H
Display TypeLCD
Environmental Conditions0 to 35 deg C Operating Temperature, -15 to 40 deg C Storage Temperature, 0 to 90% Non-Condensing Relative Humidity, <25 dB Audible Noise
Frequency Rating47 to 70/57 to 70 Hz
Input Voltage93 to 138 V AC
InterfaceLCD Display
LengthCord: 6 ft
ManufacturerEaton
Mounting TypeTower
NEMA Plug ConfigurationNEMA 5-15P
NEMA Receptacle ConfigurationNEMA 5-15R
Output Voltage100/120/127 V AC
Phase1
Power Rating1.4 kW
Series5S Series
Documents
Applications
For backup power and electronic power conversion, commercial, institutional buildings, structures, datacenters, it space, ci and hyper converged, enterprise, server room, network closet, industrial facilities and factories facility - other, stationary machinery equipment in factory - assembly equipment (electronics, solar, cars, medicals), water and wastewater systems applications
Included
User Manual
Features
- Line interactive topology
- >95% efficiency
- USB HID port as standard, 6 ft USB cable communication ports
- 46 to 70 Hz (50 Hz system), 57 to 70 Hz (60 Hz system) input frequency range without using batteries
- 120 VAC nominal voltage
- Sealed, maintenance free battery
- Tower configuration
- Black color
