Cutler-Hammer Series 13104RQD07

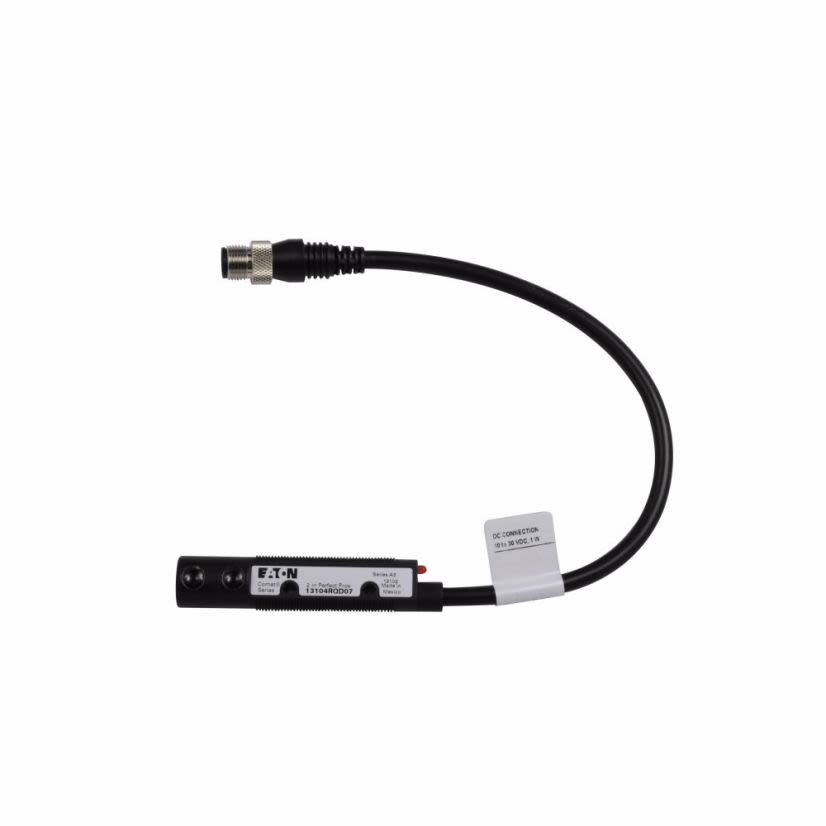

EATON Cutler-Hammer Series Perfect Prox® 13104RQD07 Comet 3/4-Wire Photoelectric Sensor, Tubular Shape, 2 in, Red Laser Sensing Beam, 1/3.5 ms Response, NPN/PNP Open Collector Output
Cutler-Hammer Series 13104RQD07
EATON Cutler-Hammer Series Perfect Prox® 13104RQD07 Comet 3/4-Wire Photoelectric Sensor, Tubular Shape, 2 in, Red Laser Sensing Beam, 1/3.5 ms Response, NPN/PNP Open Collector OutputNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #13104RQD07
Werner Part #584706
UPC782113945521
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #13104RQD07
Werner Part #584706
UPC782113945521
Product Description
EATON Cutler-Hammer Series Perfect Prox® Photoelectric Sensor, 3/4-Wire, Series: Comet, Tubular, Background Suppression Sensing Method, 2 in Sensing Range, Red Laser Sensing Beam, 1/3.5 ms Response, NPN/PNP Open Collector Output, 10 to 30 VDC, 100/250 mA, 1 W, 4-Pin M12, LED Light Source, 30 g, 3.02 in L x 0.47 in W x 0.71 in H, NEMA 1/3/4/4X/6/12/13/IP69K, -40 to 158 deg F Operating, Surface Mount
Attributes
Documents
Features
Attributes
Connection Type4-Pin M12
Country of OriginMexico
Enclosure TypeNEMA 1/3/4/4X/6/12/13/IP69K
Frequency Rating50/60 Hz
ManufacturerEaton Corp
Mounting TypeSurface
Operating Temperature-40 to 158 deg F
SeriesComet
ShapeTubular
Size3.02 in L x 0.47 in W x 0.71 in H
Type / Style3/4-Wire
Wattage1 W
Documents
Features
Industry standard 18 mm dia threaded body has flat sides allowing It to be mounted like a tubular sensor or against any flat surfaceRight angle viewing models mount in a depth of only 6/10th of an inSolid polyurethane housing completely encapsulates internal circuits for high resistance to shock and vibrationAdaptable modulation circuit provides immunity to crosstalk from other closely mounted sensorsThe industry's only background rejection sensors with a 2-wire circuit design4-wire DC sensors offer both NPN and PNP outputsOutput status indicator visible from a wide 270 deg anglePVC cable jacket, structural polyurethane foam housing, polycarbonate lensSwitch selectable light dark operationLights steady when output is ON flashes when short circuit protection is in latch condition100 mA maximum at PNP, 250 mA maximum at NPN output30 g over 10 Hz to 2 kHz vibration
