Cutler-Hammer Series 10250T20LB

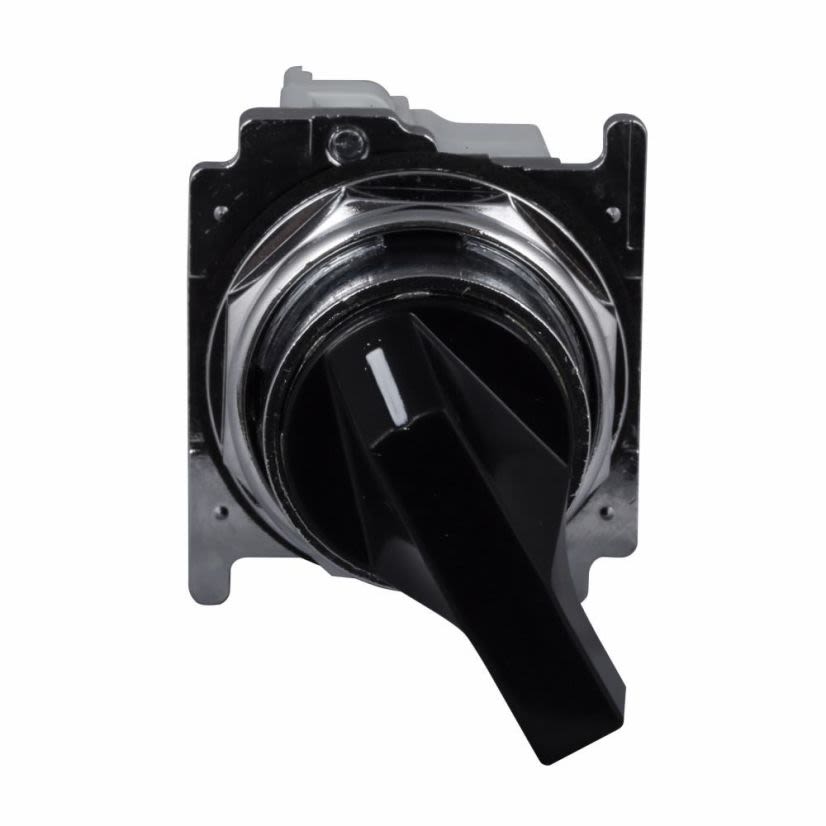

EATON 10250T20LB Heavy Duty Non-Illuminated Selector Switch, 30.5 mm, 1NO-1NC Contact, Black
Cutler-Hammer Series 10250T20LB
EATON 10250T20LB Heavy Duty Non-Illuminated Selector Switch, 30.5 mm, 1NO-1NC Contact, BlackNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #10250T20LB
Werner Part #543820
UPC782113357355
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #10250T20LB
Werner Part #543820
UPC782113357355
Product Description
EATON Non-Illuminated Selector Switch, Heavy Duty, Series: 10250T, 30.5 mm Size, 1NO-1NC Contact Configuration, Maintained Contact Mode, 10 A at 600 V AC 50/60 Hz Contact, 2 Positions, 60 deg Throw, Lever Actuator, NEMA 3/3R/4/4X/12/13/IP65 Enclosure, Die Cast Zinc, Black
Attributes
Documents
Applications
Features
Specifications
Attributes
Actuator TypeLever
ColorBlack
Contact Configuration1NO-1NC
Contact ModeMaintained
Contact Rating10 A at 600 V AC 50/60 Hz
Country of OriginDO
Enclosure TypeNEMA 3/3R/4/4X/12/13/IP65
ManufacturerEaton
MaterialDie Cast Zinc
Series10250T
Size30.5 mm
Documents
Applications
Automation and Logic Control Equipment Applications
Features
- Enclosed silver contacts with reliability nibs
- Diaphragm seals with drainage holes
- Grounding nibs on the operator casing
- Reliability nibs improve contact reliability even under dry circuit and fine dust conditions
- Drainage holes prevent buildup of liquid inside the operator which can prevent operation in freezing environments
- Grounding nibs bit through paint and other coatings to provide secure ground
- Watertight and oiltight (indoor/outdoor) environmental conditions
Specifications
- CE Marked
- Class I Div 1 Group A, B, C, D
- Class II/Class III
- CSA Certified
- CSA File No. LR13046
- UL File No. E122485
- UL Listed
