Decora Plus 5691-2GY

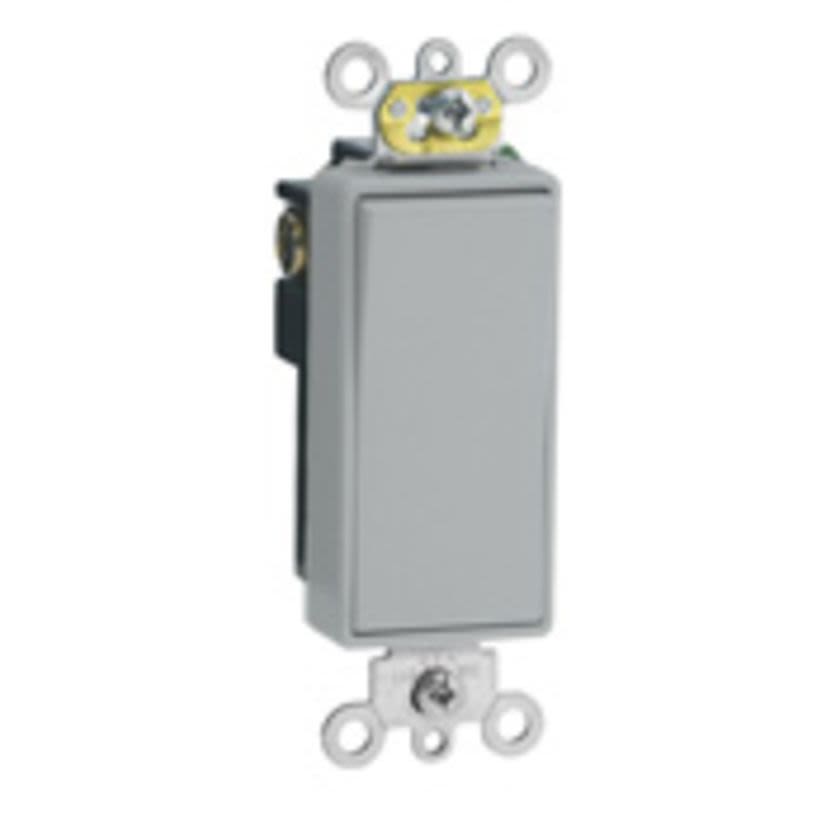

Leviton® Decora® Plus 5691-2GY Self-Grounding AC Quiet Switch, 15 A, 1/2 hp, 2 hp
Decora Plus 5691-2GY
Leviton® Decora® Plus 5691-2GY Self-Grounding AC Quiet Switch, 15 A, 1/2 hp, 2 hpNon-stock product. Available to order - lead time may vary.
BrandDecora Plus
MFG #5691-2GY
Werner Part #45700
UPC078477789575
Non-stock product. Available to order - lead time may vary.
BrandDecora Plus
MFG #5691-2GY
Werner Part #45700
UPC078477789575
Product Description
Leviton® Decora® Plus AC Quiet Switch, Self-Grounding, 15 A, 1/2 hp, 2 hp, 1 Poles, Maintained/Momentary, Rocker, Surface, Back/Side Wired Terminal, 50000 Cycles Operating Cycles, Thermoplastic, Gray, Environmental Conditions: -40 to 120 deg C Operating Temperature, 4.06 in H x 1.76 in W x 1.42 in D
Attributes
Documents
Features
Specifications
Attributes
Actuator TypeRocker
ColorGray
Country of OriginMexico
Dimensions4.06 in H x 1.76 in W x 1.42 in D
Electrical Ratings1/2 hp, 2 hp
ManufacturerLeviton
MaterialThermoplastic
Mounting TypeSurface
Number of Poles1
Temperature Rating-40 to 120 deg C Operating Temperature
Terminal TypeBack/Side Wire
TypeSelf-Grounding
Type / StyleSelf-Grounding
Voltage Rating120/277 VAC
Documents
Features
Full rated current capacity with tungsten, fluorescent or resistive loadsMotor capacity is 80% of switch ratingBack and side wiring terminals accept both solid and stranded wire for easy installationNew architecturally styled smooth action concave rockerHeavy duty impact resistant thermoplastic construction for long service life in commercial applicationsTwo ground connection options a green grounding screw and a self-grounding clipEngineered for fine tolerances and top performanceDecora® plus switches feature impact resistant thermoplastic construction for long service life1/2 hp at 120 VAC, 2 hp at 240/277 VAC power rating
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|NEMA WD1/WD6|ANSI C73|UL 20 File No. E7458|CSA C22.2 No. 111 File No. 152105/LR3413|NOM 057|Federal Specification WS896|UL94 V-2 Flammability Rating
