Decora Plus 5685-2T

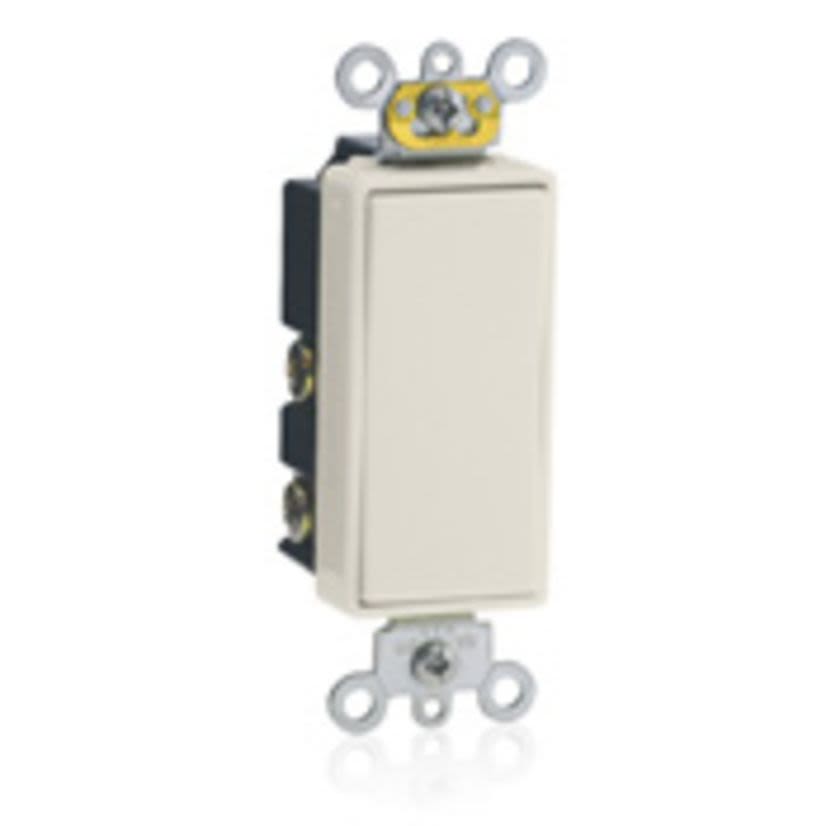

Leviton® Decora® Plus 5685-2T Self-Grounding AC Quiet Switch, 120/277 VAC, 15 A, 1/2 hp, 2 hp, SPDT
Decora Plus 5685-2T
Leviton® Decora® Plus 5685-2T Self-Grounding AC Quiet Switch, 120/277 VAC, 15 A, 1/2 hp, 2 hp, SPDTNon-stock product. Available to order - lead time may vary.
BrandDecora Plus
MFG #5685-2T
Werner Part #2128741
UPC078477271162
Non-stock product. Available to order - lead time may vary.
BrandDecora Plus
MFG #5685-2T
Werner Part #2128741
UPC078477271162
Product Description
Leviton® Decora® Plus AC Quiet Switch, Self-Grounding, 120/277 VAC, 15 A, 1/2 hp, 2 hp, SPDT, 1 Poles, Center-OFF/Maintained, Rocker, Surface, Back/Side Wired Terminal, 30000 Operating Cycles, Thermoplastic, Light Almond, Environmental Conditions: -40 to 120 deg C Operating Temperature, 46 in H x 1.7 in W x 1.42 in D
Attributes
Documents
Features
Specifications
Attributes
Actuator TypeRocker
ColorLight Almond
Country of OriginMexico
Dimensions1.7 in W x 1.42 in D x 46 in H
Electrical Ratings1/2 hp, 2 hp
ManufacturerLeviton
MaterialThermoplastic
Mounting TypeSurface
Number of Poles1
Temperature RatingUL 94 V-2 Flammability Rated
Terminal TypeBack/Side Wire
TypeAC Quiet Self- Grounding
Type / StyleSelf-Grounding
Voltage Rating120/277 VAC
Features
Full rated current capacity with tungsten, fluorescent or resistive loadsMotor capacity is 80% of switch ratingWrap around heavy gauge strap with locking tabs for added strengthBack and side wiring terminals accept both solid and stranded wire for easy installation
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C73|CSA File No. LR3413|CSA C22.2 No. 111 File No. 152105|Federal Specification WS896|NEMA WD1/WD6|NOM 057|UL 20 File No. E7458|UL94 V-2 Flammability Rating
