Decora Plus 5628-2W

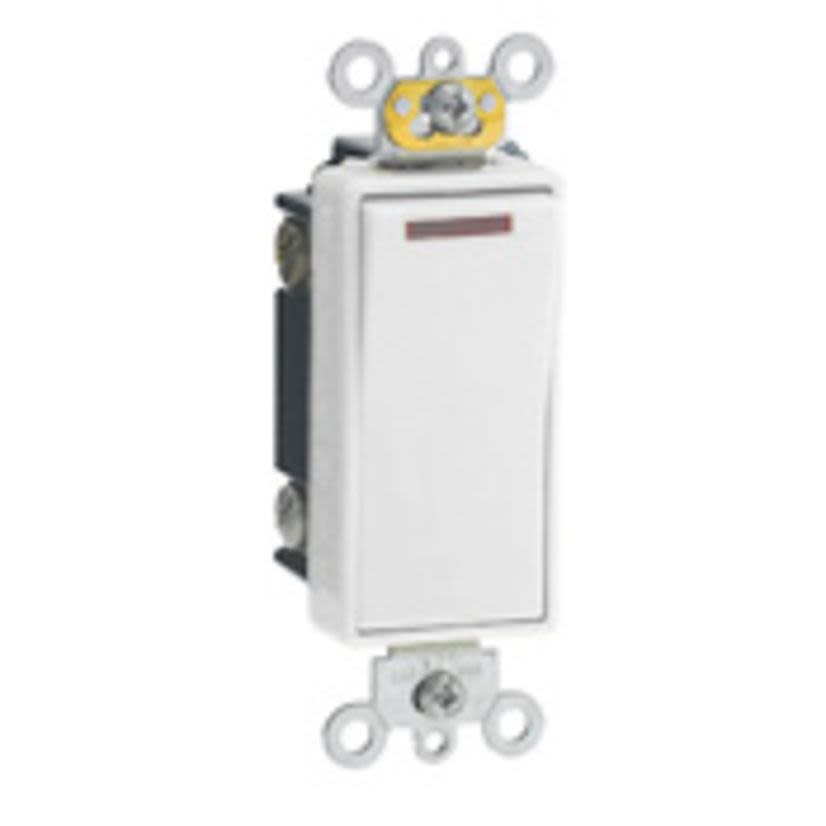

Leviton® Decora® Plus 5628-2W Self-Grounding Pilot Light AC Quiet Switch, 120 VAC, 20 A, 1 hp
Decora Plus 5628-2W
Leviton® Decora® Plus 5628-2W Self-Grounding Pilot Light AC Quiet Switch, 120 VAC, 20 A, 1 hpNon-stock product. Available to order - lead time may vary.
BrandDecora Plus
MFG #5628-2W
Werner Part #45672
UPC078477515648
Non-stock product. Available to order - lead time may vary.
BrandDecora Plus
MFG #5628-2W
Werner Part #45672
UPC078477515648
Product Description
Leviton® Decora® Plus AC Quiet Switch, Self-Grounding Pilot Light, 120 VAC, 20 A, 1 hp, 1 Poles, Maintained/Momentary, Rocker, Surface, Back/Side Wired Terminal, 50000 Operating Cycles, Thermoplastic, White, Environmental Conditions: -40 to 120 deg C Operating Temperature, 46 in H x 1.76 in W x 1.6 in D
Attributes
Documents
Features
Specifications
Attributes
Actuator TypeRocker
ColorWhite
Country of OriginMexico
Dimensions46 in H x 1.76 in W x 1.6 in D
Electrical Ratings1 hp
ManufacturerLeviton
MaterialThermoplastic
Mounting TypeSurface
Number of Poles1
Temperature Rating-40 to 120 deg C Operating Temperature
Terminal TypeBack/Side Wire
TypeSelf-Grounding Pilot Light
Type / StyleSelf-Grounding Pilot Light
Voltage Rating120 VAC
Features
Full rated current capacity with tungsten, fluorescent or resistive loadsMotor capacity is 80% of switch ratingBack and side wiring terminals accept both solid and stranded wire for easy installationNew architecturally styled smooth action concave rockerHeavy duty impact resistant thermoplastic construction for long service life in commercial applicationsTwo ground connection options a green grounding screw and a self-grounding clipEngineered for fine tolerances and top performanceDecora® plus switches feature impact resistant thermoplastic construction for long service life
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C73|CSA File No. LR3413|CSA C22.2 No. 111 File No. 152105|Federal Specification WS896E File No. E7458|NEMA WD1/WD6|NOM 057|UL 20|UL94 V-2 Flammability Rating
