Decora Plus 5621-2T

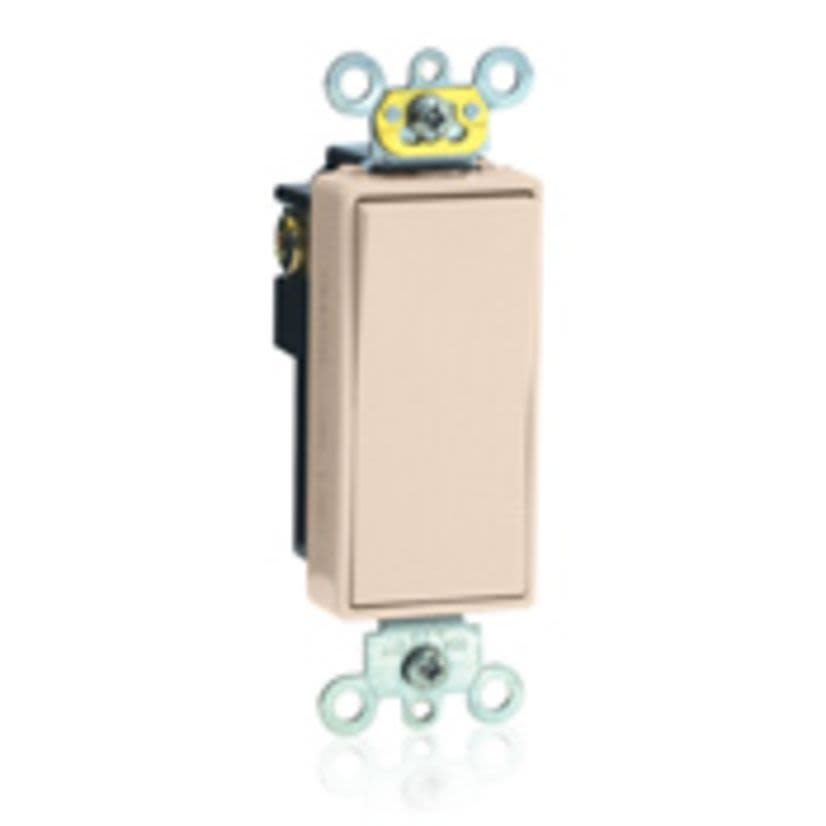

Leviton® Decora® Plus 5621-2T Self-Grounding AC Quiet Switch, 120/277 VAC, 20 A, 1 hp, 2 hp
Decora Plus 5621-2T
Leviton® Decora® Plus 5621-2T Self-Grounding AC Quiet Switch, 120/277 VAC, 20 A, 1 hp, 2 hpNon-stock product. Available to order - lead time may vary.
BrandDecora Plus
MFG #5621-2T
Werner Part #2132020
UPC078477271001
Non-stock product. Available to order - lead time may vary.
BrandDecora Plus
MFG #5621-2T
Werner Part #2132020
UPC078477271001
Product Description
Leviton® Decora® Plus AC Quiet Switch, Self-Grounding, 120/277 VAC, 20 A, 1 hp, 2 hp, 1 Poles, Maintained/Momentary, Rocker, Surface, Back/Side Wired Terminal, 50000 Operating Cycles, Thermoplastic, Light Almond, Environmental Conditions: -40 to 120 deg C Operating Temperature, 46 in H x 1.76 in W x 1.6 in D
Attributes
Documents
Features
Specifications
Attributes
Actuator TypeRocker
ColorLight Almond
Country of OriginMexico
Dimensions46 in H x 1.76 in W x 1.6 in D
Electrical Ratings1 hp, 2 hp
ManufacturerLeviton
MaterialThermoplastic
Mounting TypeSurface
Number of Poles1
Temperature Rating-40 to 120 deg C Operating Temperature
Terminal TypeBack/Side Wire
TypeSelf-Grounding
Type / StyleSelf-Grounding
Voltage Rating120/277 VAC
Documents
Features
Full rated current capacity with tungsten, fluorescent or resistive loadsMotor capacity is 80% of switch ratingBack and side wiring terminals accept both solid and stranded wire for easy installationNew architecturally styled smooth action concave rockerHeavy duty impact resistant thermoplastic construction for long service life in commercial applicationsTwo ground connection options a green grounding screw and a self-grounding clipEngineered for fine tolerances and top performanceDecora® plus switches feature impact resistant thermoplastic construction for long service life
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C73|CSA File No. LR3413|CSA C22.2 No. 111 File No. 152105|Federal Specification WS896E File No. E7458|NEMA WD1/WD6|NOM 057|UL 20|UL94 V-2 Flammability Rating
