Decora Plus 16252-T

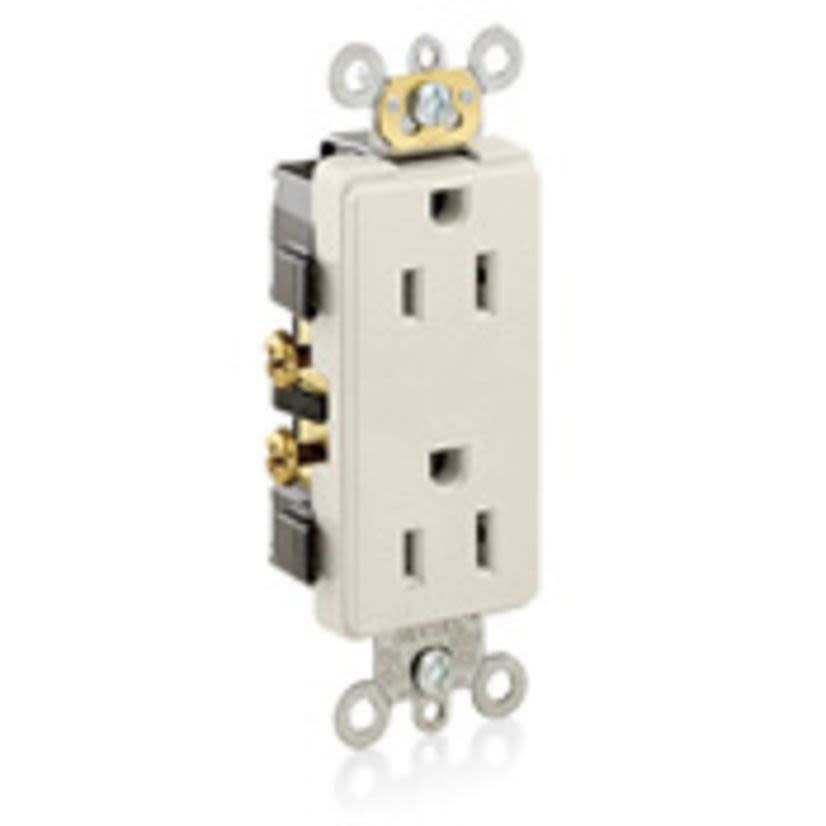

Leviton® Decora® Plus 16252-T Heavy Duty Self Grounding Straight Blade Duplex Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Light Almond
Decora Plus 16252-T
Leviton® Decora® Plus 16252-T Heavy Duty Self Grounding Straight Blade Duplex Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Light AlmondNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Decora® Plus Straight Blade Duplex Receptacle, Heavy Duty Self Grounding, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA, Commercial Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Back/Side Wired Terminal, Thermoplastic, Light Almond, 4.06 in H x 1.52 in W x 1.14 in D Dimensions
Attributes
Documents
Features
Specifications
Attributes
ColorLight Almond
Country of OriginMexico
Dimensions4.06 in H x 1.52 in W x 1.14 in D
Enclosure TypeNEMA WD-1/WD-6
GradeCommercial
Horsepower1/2 hp
ManufacturerLeviton
MaterialThermoplastic
NEMA RatingNEMA 5-15R
Number of Poles2
Number of Wires3
Temperature Rating-40 to 60 deg C
Terminal TypeBack/Side Wire
TypeHeavy Duty Self Grounding
Type / StyleHeavy Duty Self Grounding
Voltage Rating125 VAC
Features
Back wire and side wire terminal optionsHeavy gauge locked-in wraparound strapBack wire terminals accept up to no 10 AWG copper or copper clad wire, solid or strandedBrass staked on self-grounding clipHeavy duty triple-wipe brass contacts for long service lifeImpact-resistant thermoplastic construction
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C-73|CSA C22.2 No. 42 File No. LR-406|NOM 057|UL 498 File No. E13399|UL 94 Flammability Rating
