Decora GFTR1-MT

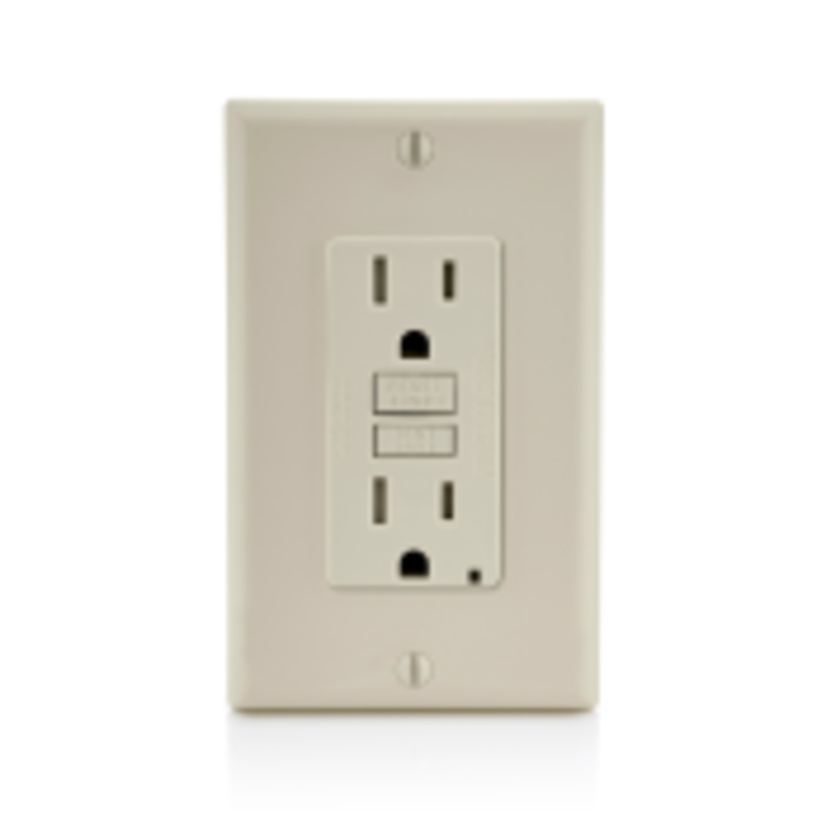

Leviton Decora GFTR1-MT Self-Test Tamper Resistant GFCI Receptacle With Light Almond Test, Reset Button, 120 V AC, 15 A, 2 Poles, 3 Wires, Light Almond
Decora GFTR1-MT
Leviton Decora GFTR1-MT Self-Test Tamper Resistant GFCI Receptacle With Light Almond Test, Reset Button, 120 V AC, 15 A, 2 Poles, 3 Wires, Light AlmondNon-stock product. Available to order - lead time may vary.
BrandDecora
MFG #GFTR1-MT
Werner Part #4160997
UPC078477764978
Non-stock product. Available to order - lead time may vary.
BrandDecora
MFG #GFTR1-MT
Werner Part #4160997
UPC078477764978
Product Description
Leviton Decora GFCI Receptacle, Self-Test Tamper Resistant, 120 V AC, 15 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial/Residential Grade, -35 to 66 deg C, Back/Side Wire Terminal, Polycarbonate, Light Almond, 4.21 in H x 1.69 in W x 1.32 in D Dimensions
Attributes
Documents
Applications
Included
Warranty
Features
Specifications
Attributes
ColorLight Almond
Country of OriginCN
Dimensions4.21 in H x 1.69 in W x 1.32 in D
Frequency Rating60 Hz
GradeCommercial/Residential
Horsepower1 hp
ManufacturerLeviton
MaterialPolycarbonate
NEMA RatingNEMA 5-15R
Number of Poles2
Number of Wires3
Temperature Rating-35 to 66 deg C
Terminal TypeBack/Side Wire
TypeSelf-Test Tamper Resistant
Type / StyleSelf-Test Tamper Resistant
Voltage Rating120 V AC
Documents
Applications
Residential, Commercial Offices, Educational Facilities, Airports, Restaurants, Lodging, Retail Malls and Public Areas Applications
Included
Midway Sized Nylon Wallplate/Faceplate, Mounting Screw, Self-Grounding Clip
Warranty
2 Years Limited
Features
- Provides continuous ground fault protection detects and trips on actual ground fault even when self-test is being conducted
- On initial power up, tests the GFCI circuit within 3 sec
- Auto-monitoring exceeds the UL requirement
- Auto adapts and shifts to more frequent testing if potential problem is detected
- Status indicator light provides simple, intuitive feedback on power and protection status as well as indication of line load reversal
- Patented lockout action prevents reset if GFCI is damaged and cannot respond to a ground fault
- Electronics are designed to minimize any false triggers
- Reduced depth makes it easier to install in any electrical box, even shallow ones
- Terminals allow for easy wiring options - back and side wire capable
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C73|CSA C22.2|Federal Specification WC596|MIL-SPEC A-A-55459-SB|NEMA WD6|NOM Certified|UL94/498/943
