Decora 5604-2E

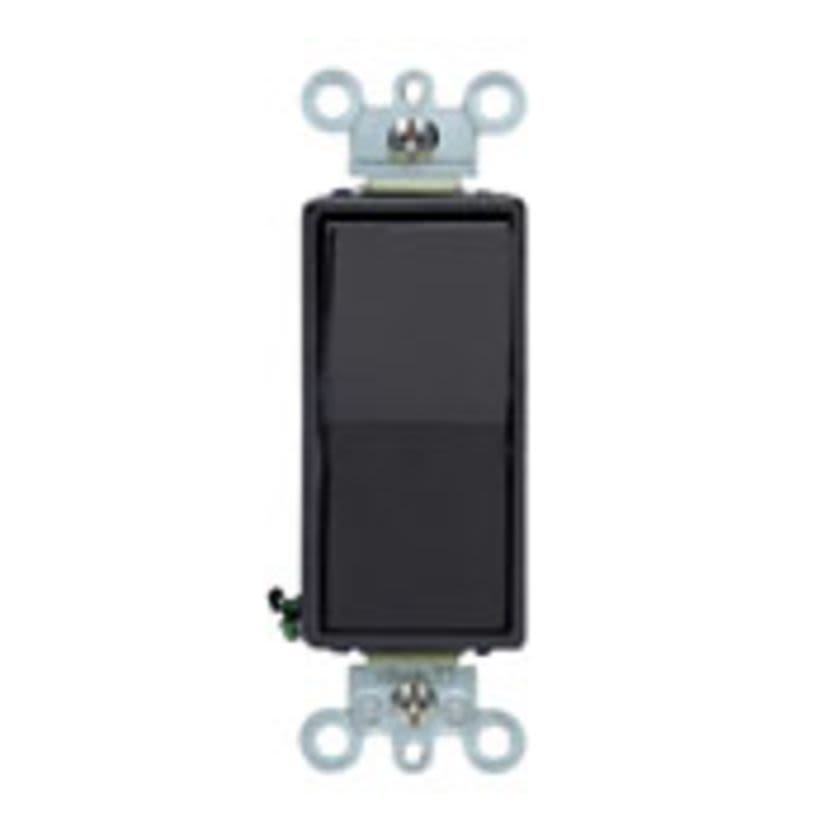

Leviton® Decora® 5604-2E 4-Way Grounding AC Quiet Switch, 120/277 VAC, 15 A, 1/2 hp, 2 hp
Decora 5604-2E
Leviton® Decora® 5604-2E 4-Way Grounding AC Quiet Switch, 120/277 VAC, 15 A, 1/2 hp, 2 hpIn Stock: 4more info
|
BrandDecora
MFG #5604-2E
Werner Part #1313183
UPC078477882771
In Stock: 4more info
|
BrandDecora
MFG #5604-2E
Werner Part #1313183
UPC078477882771
Product Description
Leviton® Decora® AC Quiet Switch, 4-Way Grounding, 120/277 VAC, 15 A, 1/2 hp, 2 hp, ON/OFF, Rocker, Surface, Quick-Wire/Push-In/Side Wired Terminal, Thermoplastic, Black, Environmental Conditions: -40 to 120 deg C Operating Temperature, 4.2 in H x 1.3 in W x 0.99 in D
Attributes
Documents
Features
Specifications
Attributes
Actuator TypeRocker
ColorBlack
Country of OriginMexico
Dimensions4.2 in H x 1.3 in W x 0.99 in D
Electrical Ratings1/2 hp, 2 hp
ManufacturerLeviton
MaterialThermoplastic
Mounting TypeSurface
Number of Poles2
Temperature Rating-40 to 120 deg C Operating Temperature
Terminal TypeQuick-Wire® Push-In/Side Wire
Type4-Way Grounding
Type / Style4-Way Grounding
Voltage Rating120/277 VAC
Features
Switch frame shields against dust and fits in wallplate to prevent rocker bindingTerminal screws accept up to #12 AWG copper or copper clad wireQuickwire push-in terminals accept 14 AWG solid copper wire onlySturdy construction for long service lifeFull rated current capacity with tungsten, fluorescent or resistive loadsMotor capacity is 80% of switch ratingComplements every Decora®Easy to wire, they work with fluorescent and resistive loads
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL File No. E7458|CSA File No. LR3413|NOM 057|UL94 V-2 Flammability Rating
