Decora 5325-GY

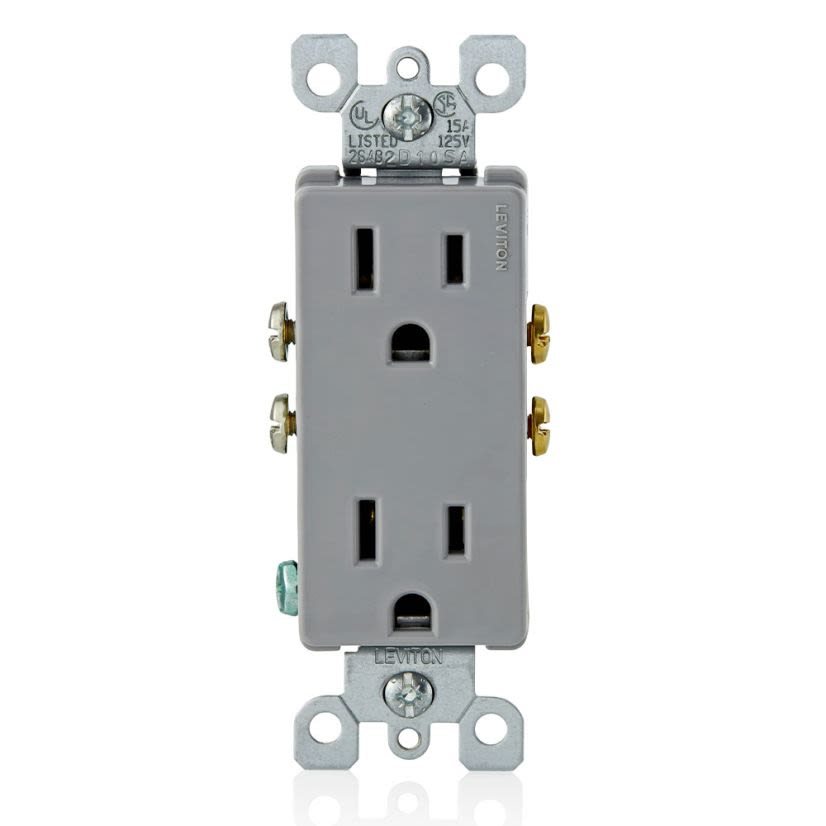

Leviton® Decora® 5325-GY Duplex Grounding Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Gray
Decora 5325-GY
Leviton® Decora® 5325-GY Duplex Grounding Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, GrayNon-stock product. Available to order - lead time may vary.
BrandDecora
MFG #5325-GY
Werner Part #45561
UPC078477233146
Non-stock product. Available to order - lead time may vary.
BrandDecora
MFG #5325-GY
Werner Part #45561
UPC078477233146
Product Description
Leviton® Decora® Straight Blade Receptacle, Duplex Grounding, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R, Grade: Commercial, -40 to 60 deg C, Quickwire/Push-In/Side Wired Terminal, Thermoplastic, Gray, 4.2 in H x 1.31 in W x 0.98 in D
Attributes
Documents
Features
Specifications
Attributes
ColorGray
Country of OriginUnited States
Dimensions4.2 in H x 1.31 in W x 0.98 in D
GradeCommercial
ManufacturerLeviton
MaterialThermoplastic
NEMA RatingNEMA 5-15R
Number of Poles2
Number of Wires3
Temperature Rating-40 to 60 deg C
Terminal TypeQuick-Wire® Push-In/Side Wire
TypeDuplex Grounding
Type / StyleDuplex Grounding
Voltage Rating125 VAC
Features
Terminal screws accept up to #12 AWG copper or copper clad wireDouble wipe power contacts for reliable conductivity and plug retentionHeavy gauge zinc plated steel mounting strap
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|NOM 057|CSA File No. LR406|UL File No. E13399|UL94 V-2 Flammability Rating
