Cutler-Hammer Series GHB2080

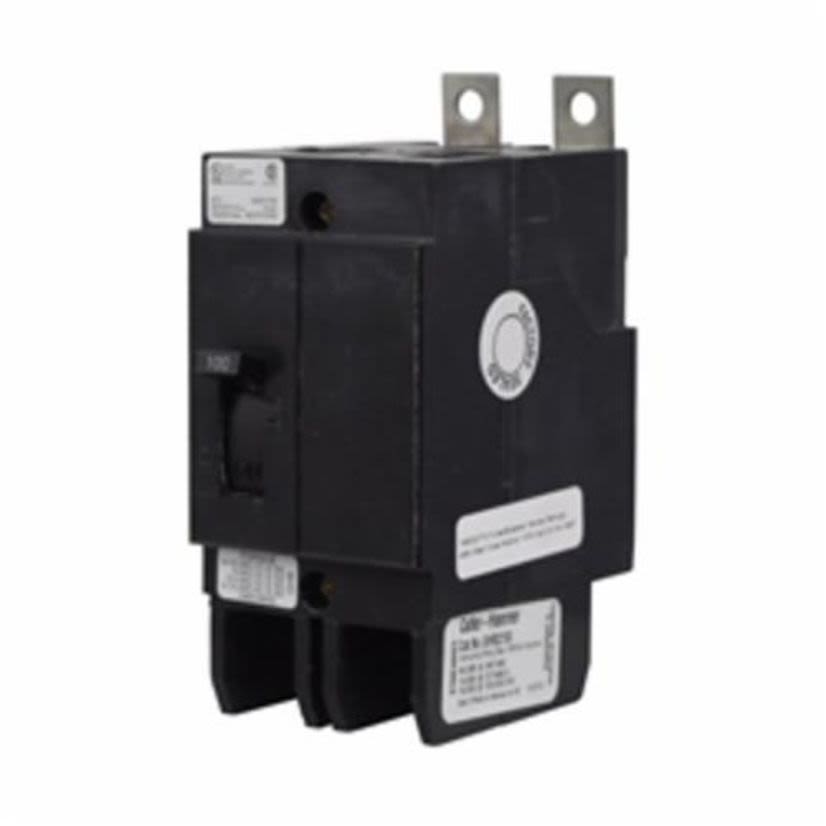

EATON Cutler-Hammer Series GHB2080 Molded Case Circuit Breaker With Non-Interchangeable Trip Unit, 277/480 VAC/125/250 VDC, 80 A, 14 kA, 2 Poles, Non-Interchangeable/Thermal-Magnetic Trip
Cutler-Hammer Series GHB2080
EATON Cutler-Hammer Series GHB2080 Molded Case Circuit Breaker With Non-Interchangeable Trip Unit, 277/480 VAC/125/250 VDC, 80 A, 14 kA, 2 Poles, Non-Interchangeable/Thermal-Magnetic TripNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
EATON Cutler-Hammer Series Molded Case Circuit Breaker, Series: Type GHB, 277/480 VAC/125/250 VDC, 80 A, 50/60 Hz, 14 kA Interrupt, G Frame, Non-Interchangeable/Thermal-Magnetic Trip, 2 Pole, 3, Line/Load, 10 to 1/0 AWG Wire, NEMA 4, Bolt-On Mount, 40 deg C, 4 in L x 2 in W x 2.63 in D
Attributes
Documents
Features
Attributes
Connection TypeLine/Load
Country of OriginDominican Republic
Dimensions2-3/8 in L x 1 in W x 3-9/32 in H
Enclosure TypeNEMA 4
FrameQ-Line
Frequency Rating50/60 Hz
Interrupt Rating10 kA
ManufacturerEaton
Mounting TypePlug-In
Number of Poles2
Phase1
SeriesType GHB
Size of Wire8 to 3 AWG
Temperature Rating60/75 deg C
Trip TypeLI/Non-Interchangeable Thermal Magnetic
TypeType THQL
Voltage277/480 VAC/125/250 VDC
Features
Patented contact design features high-speed "blow-open" action, resulting in superior performanceCircuit breakers significantly outperform the calculations listed in The Institute of electrical and electronic engineers (IEEE) standard 1584-2002, guide for performing arc flash hazard calculationsChoose from a complete family of trip units including thermal magnetic, electronic, and magnetic only switches
