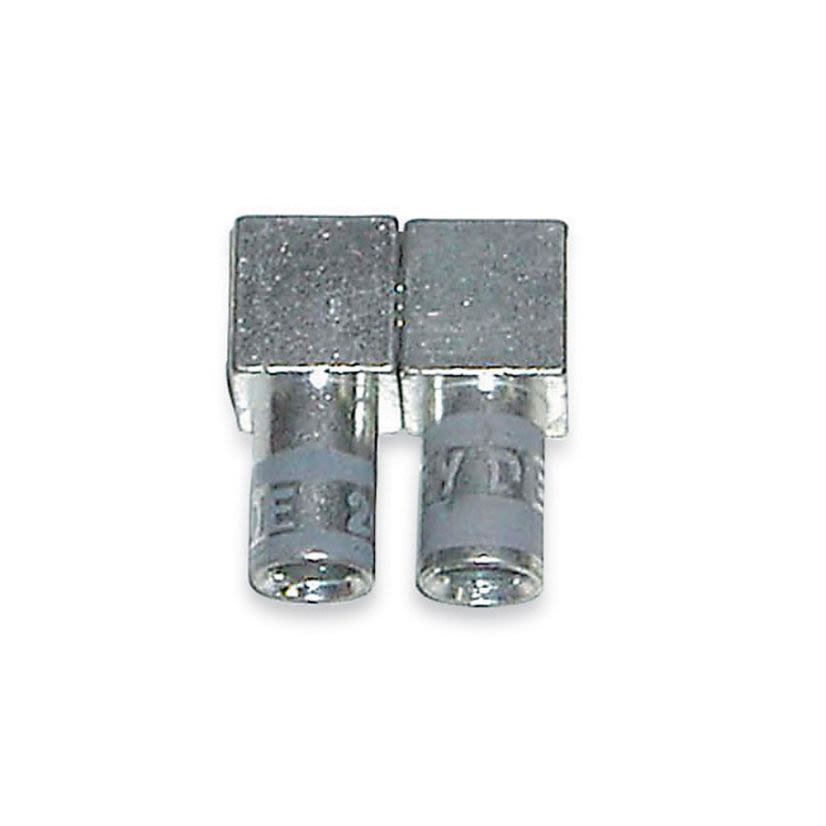

Color-Keyed MD4F-2
Color-Keyed MD4F-2 1-Load Female Motor Lead Pigtail Disconnect, 4 AWG Beryllium Copper Conductor, Die Code: 29, Copper
Color-Keyed MD4F-2
Color-Keyed MD4F-2 1-Load Female Motor Lead Pigtail Disconnect, 4 AWG Beryllium Copper Conductor, Die Code: 29, CopperIn Stock: 4more info
|
BrandColor-Keyed
MFG #MD4F-2
Werner Part #64881
UPC786210786896
In Stock: 4more info
|
BrandColor-Keyed
MFG #MD4F-2
Werner Part #64881
UPC786210786896
Product Description
Color-Keyed Motor Lead Pigtail Disconnect, 1-Load Female, Beryllium Copper Conductor, 4 AWG Conductor, Die Code: 29, 600 V AC to 5 kV, Boot MDBOOT2 Insulation, 1/2 in Strip Length, Specifications: Body Size 2, Tin Plated, 0.37 in Mounting Hole, Copper, Gray Color Code, 1.06 in L x 0.5 in W
Attributes
Documents
Applications
Features
Specifications
Attributes
Conductor size4 AWG
Conductor TypeBeryllium Copper
Country of OriginMX
Die Code29
Dimensions1.06 in L x 0.5 in W
ManufacturerABB
MaterialCopper
Mounting Hole Type0.37 in
Type1-Load Female
Type / Style1-Load Female
Voltage Rating600 V AC to 5 kV
Documents
Applications
For 600 VAC and 5 kVAC applications
Features
- One line to one load (2-wire)
- Fast, snap together assembly offers maximum labor savings
- Not need for nuts, bolts and washers or insulating tape - simply slide on reusable boot
- Quick disconnect, no knife cutting of melted tape, eliminating the risk of accidental cutting of wire insulation, resulting motor downtime and installer exposure
- Meet or exceed electrical and mechanical performance of bolted connections
- Constructed of high conductivity copper with tin plated finish
- Thermoplastic elastomer insulator
- Quick, reliable change out of electric motors with no bolting, taping or loose connections
- Total assembly fits into tight motor housings
- Female disconnects equipped with beryllium copper interface band for dependable connections
Specifications
Body Size 2, Tin Plated
