Color-Keyed MD1614F-1

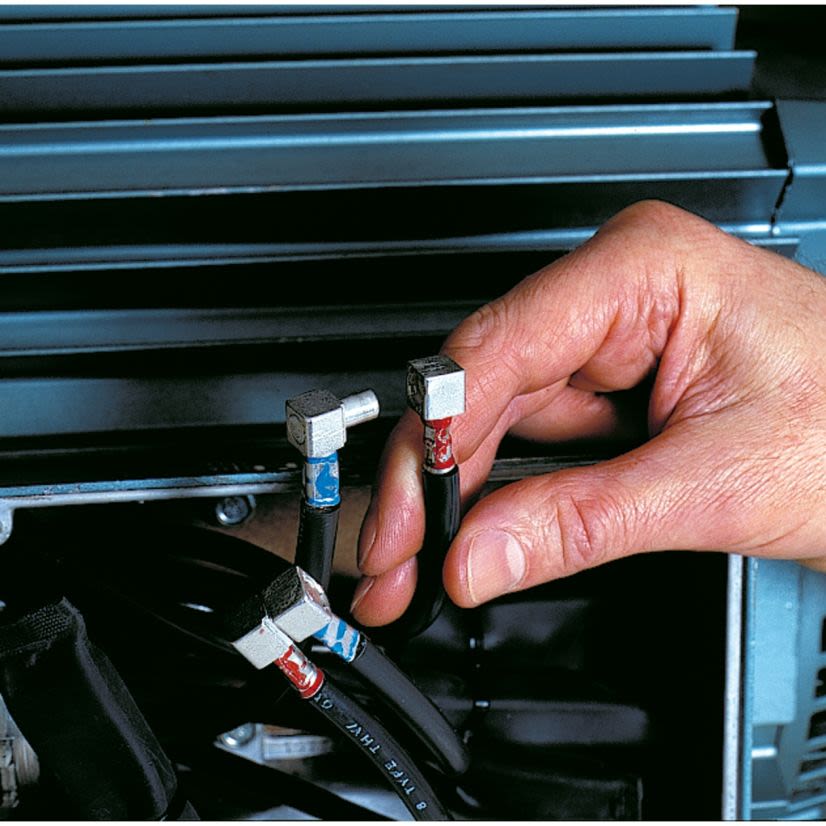

Color-Keyed MD1614F-1 1-Load Female Motor Lead Pigtail Disconnect, 16 to 14 AWG Beryllium Copper Conductor, Copper
Color-Keyed MD1614F-1
Color-Keyed MD1614F-1 1-Load Female Motor Lead Pigtail Disconnect, 16 to 14 AWG Beryllium Copper Conductor, CopperNon-stock product. Available to order - lead time may vary.
BrandColor-Keyed
MFG #MD1614F-1
Werner Part #64868
UPC786210703145
Non-stock product. Available to order - lead time may vary.
BrandColor-Keyed
MFG #MD1614F-1
Werner Part #64868
UPC786210703145
Product Description
Color-Keyed Motor Lead Pigtail Disconnect, 1-Load Female, Beryllium Copper Conductor, 16 to 14 AWG Conductor, 600 V AC to 5 kV, Boot MDBOOT1 Insulation, 3/8 in Strip Length, Specifications: Body Size 1, Tin Plated, 1/4 in Mounting Hole, Copper, Blue Color Code, 0.78 in L x 0.38 in W
Attributes
Documents
Applications
Features
Specifications
Attributes
Conductor size16 to 14 AWG
Conductor TypeBeryllium Copper
Country of OriginMX
Dimensions0.78 in L x 0.38 in W
ManufacturerABB
MaterialCopper
Mounting Hole Type1/4 in
Type1-Load Female
Type / Style1-Load Female
Voltage Rating600 V AC to 5 kV
Documents
Applications
For 600 VAC and 5 kVAC applications
Features
- One line to one load (2-wire)
- Fast, snap together assembly offers maximum labor savings
- Not need for nuts, bolts and washers or insulating tape - simply slide on reusable boot
- Quick disconnect, no knife cutting of melted tape, eliminating the risk of accidental cutting of wire insulation, resulting motor downtime and installer exposure
- Meet or exceed electrical and mechanical performance of bolted connections
- Constructed of high conductivity copper with tin plated finish
- Thermoplastic elastomer insulator
- Quick, reliable change out of electric motors with no bolting, taping or loose connections
- Total assembly fits into tight motor housings
- Female disconnects equipped with beryllium copper interface band for dependable connections
Specifications
Body Size 1, Tin Plated
