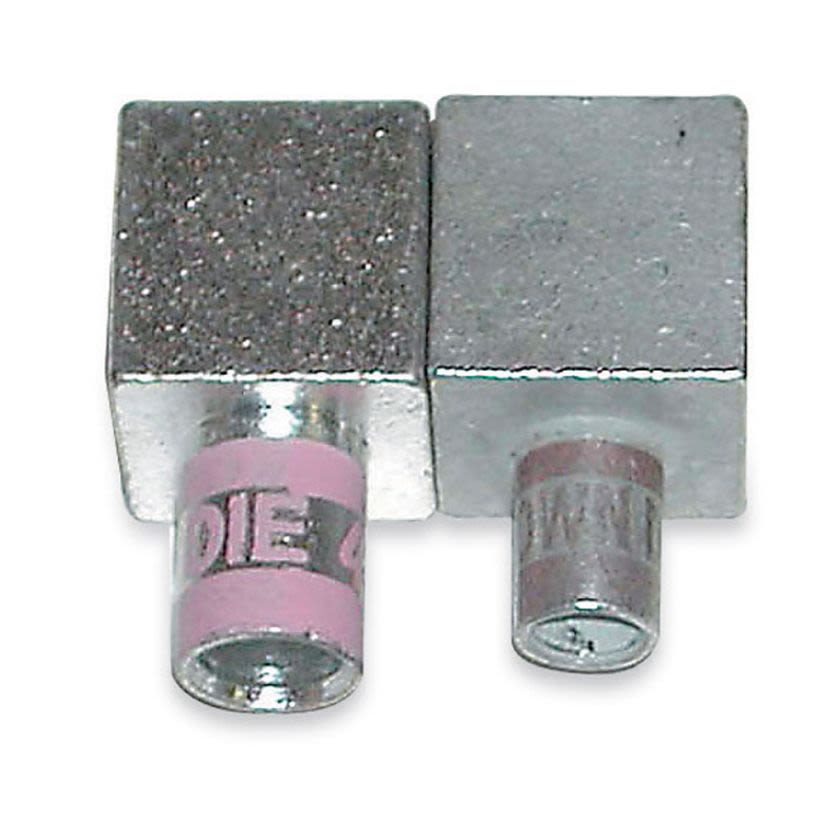

Color-Keyed MD10F-3
Color-Keyed MD10F-3 1-Load Female Motor Lead Pigtail Disconnect, 1/0 AWG Beryllium Copper Conductor, Die Code: 42, Copper
Color-Keyed MD10F-3
Color-Keyed MD10F-3 1-Load Female Motor Lead Pigtail Disconnect, 1/0 AWG Beryllium Copper Conductor, Die Code: 42, CopperNon-stock product. Available to order - lead time may vary.
BrandColor-Keyed
MFG #MD10F-3
Werner Part #64862
UPC786210840482
Non-stock product. Available to order - lead time may vary.
BrandColor-Keyed
MFG #MD10F-3
Werner Part #64862
UPC786210840482
Product Description
Color-Keyed Motor Lead Pigtail Disconnect, 1-Load Female, Beryllium Copper Conductor, 1/0 AWG Conductor, Die Code: 42, 600 V AC to 5 kV, Boot MDBOOT3 Insulation, 9/16 in Strip Length, Specifications: Body Size 3, Tin Plated, 1/2 in Mounting Hole, Copper, Pink Color Code, 1.56 in L x 0.88 in W
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorPink
Conductor size1/0 AWG
Conductor TypeBeryllium Copper
Country of OriginMX
Die Code42
Dimensions1.56 in L x 0.88 in W
ManufacturerABB
MaterialCopper
Mounting Hole Type1/2 in
Type1-Load Female
Type / Style1-Load Female
Voltage Rating600 V AC to 5 kV
Documents
Applications
For 600 VAC and 5 kVAC applications
Features
- One line to one load (2-wire)
- Fast, snap together assembly offers maximum labor savings
- Not need for nuts, bolts and washers or insulating tape - simply slide on reusable boot
- Quick disconnect, no knife cutting of melted tape, eliminating the risk of accidental cutting of wire insulation, resulting motor downtime and installer exposure
- Meet or exceed electrical and mechanical performance of bolted connections
- Constructed of high conductivity copper with tin plated finish
- Thermoplastic elastomer insulator
- Quick, reliable change out of electric motors with no bolting, taping or loose connections
- Total assembly fits into tight motor housings
- Female disconnects equipped with beryllium copper interface band for dependable connections
Specifications
Body Size 3, Tin Plated
