Cooper Lighting Solutions HC610D010

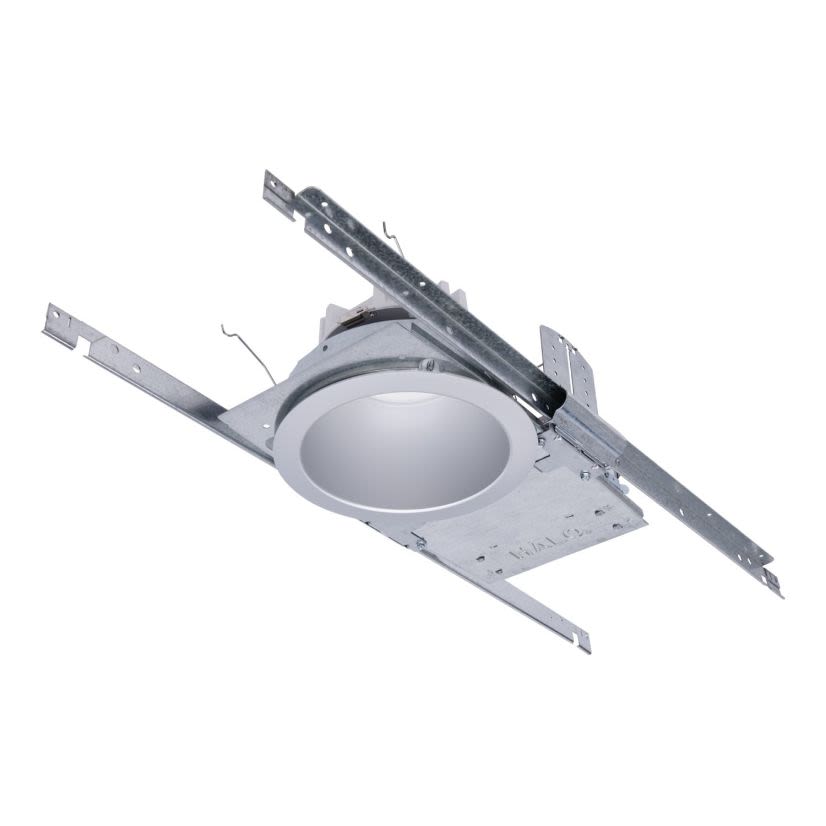

HALO Commercial HC610D010 HC6 New Construction Remodel Universal Downlight Housing, LED Lamp, IC Insulation, 120 to 277 V AC, 5.63 in Ceiling Opening, Galvanized Steel Housing
š Ships Quickly from Cooper
Cooper Lighting Solutions HC610D010
HALO Commercial HC610D010 HC6 New Construction Remodel Universal Downlight Housing, LED Lamp, IC Insulation, 120 to 277 V AC, 5.63 in Ceiling Opening, Galvanized Steel HousingNon-stock product. Available to order - lead time may vary.
BrandCooper Lighting Solutions
MFG #HC610D010
Werner Part #4275237
UPC080083883646
Non-stock product. Available to order - lead time may vary.
BrandCooper Lighting Solutions
MFG #HC610D010
Werner Part #4275237
UPC080083883646
Product Description
HALO Commercial, HC610D010, Downlight Housing, New Construction Remodel Universal, Series: HC6, 120 to 277 V AC, 5.63 in Ceiling Opening, LED Lamp, 10.1/10.9 W Lamp, 1 Lamps, IC Insulation, IP20/IP64 Enclosure, Ceiling Mounting, For Use With: Regressed Lens Downlight and Wall Wash, 7-3/4 in Diameter, 4.6 in Height, 26.4 in Width, 8.6 in Depth, Galvanized Steel Housing Material
Attributes
Documents
Applications
Features
Specifications
Warranty
Attributes
Ceiling Opening5.63 in
Country of OriginMX
Diameter7-3/4 in
Enclosure TypeIP20/IP64
Height4.6 in
Housing MaterialGalvanized Steel
Insulation TypeIC
Lamp TypeLED
Lamp Wattage10.1/10.9 W
Lumen1000
ManufacturerCooper Lighting Solutions
Mounting TypeRecessed
Number of Lamps1
Package TypeEACH
SeriesHC6
Suitable For Use WithRegressed Lens Downlight and Wall Wash
TypeNew Construction Remodel Universal
Voltage Rating120 to 277 V AC
Wattage10.1W at 120V and 10.9W at 277V
Documents
Applications
Offices, Healthcare, Hospitality, Institutional and Mixed-Use/Retail Applications
Features
- 6 in aperture new construction/remodel downlights series
- Narrow, medium and wide distributions, wall wash with rotatable linear spread lens
- Standard 0 to 10V driver dims to 1%
- Retrofit kits install from below ceiling for LED upgrades
- Boat shaped galvanized steel plaster frame with adjustable plaster lip
- Accommodates 1/2 to 1-1/2 in thick ceilings
- Installs in new construction or from below the finished ceiling (non-accessible) for remodeling (with mounting bars removed)
- Provided with two remodel clips to secure the frame to the ceiling
- 6 in new construction and remodeler housing
Specifications
- ASTM E283-04
- California Title 24 JA8
- cULus Listed For Wet/Damp Locations
- Energy Star Certified
- FCC 47 CFR Part 15 Class A
- IES LM-79-08/80-08/TM-21-11
- NEC 410.16
- RoHS Compliant
- CSA C22.2 File No. 250
- UL 1598
Warranty
5 Years Limited
