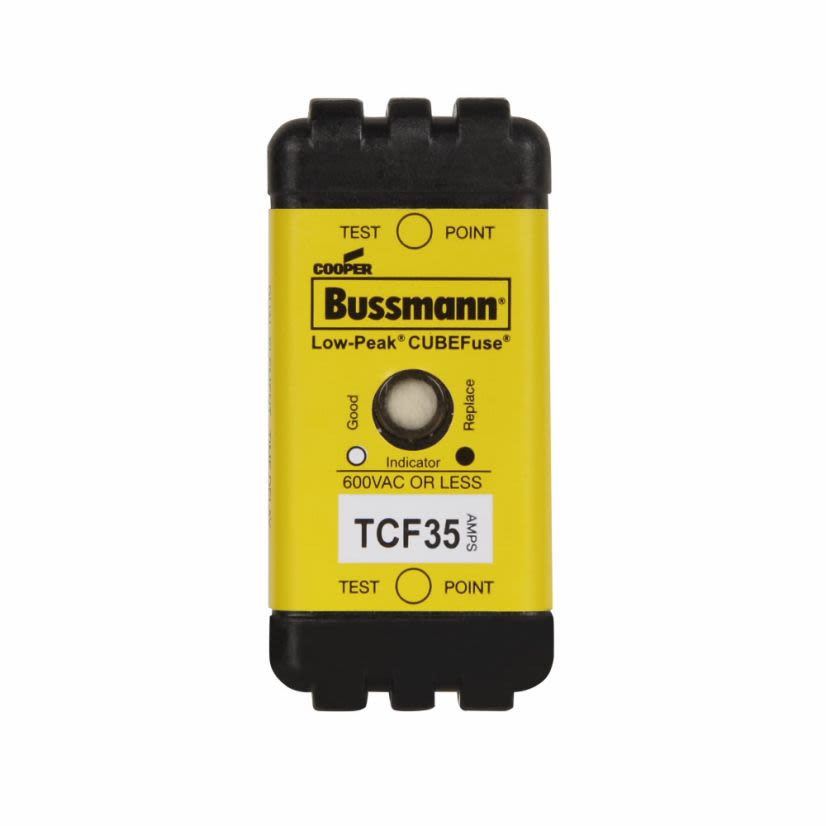

Bussmann Series TCF35
Bussmann Low-Peak CUBEFuse TCF35 Non Indicating Time Delay Current Limiting Inrush Current Withstand Fuse, 35 A, 600 V AC/300 V DC, 300/100 kAIC Interrupt, Class: CF, Square Body
Bussmann Series TCF35
Bussmann Low-Peak CUBEFuse TCF35 Non Indicating Time Delay Current Limiting Inrush Current Withstand Fuse, 35 A, 600 V AC/300 V DC, 300/100 kAIC Interrupt, Class: CF, Square BodyNon-stock product. Available to order - lead time may vary.
BrandBussmann Series
MFG #TCF35
Werner Part #662198
UPC051712615044
Non-stock product. Available to order - lead time may vary.
BrandBussmann Series
MFG #TCF35
Werner Part #662198
UPC051712615044
Product Description
Bussmann Low-Peak CUBEFuse Fuse, Non Indicating Time Delay Current Limiting Inrush Current Withstand, Series: TCF, 35 A, 600 V AC/300 V DC, 300/100 kAIC Interrupt, Class: CF, 10 S at 500% Response, Blade End Terminal, Chassis/DIN Rail Mount, Square Body Type, Dual Element, Glass Filled Polyethersulfone Case, 2.13 in L x 1 in W x 1.13 in H Body Size
Attributes
Documents
Applications
Features
Attributes
Body Size2.13 in L x 1 in W x 1.13 in H
Body TypeSquare
ClassCF
Country of OriginCN
ElementDual
Interrupt Rating300/100 kAIC
ManufacturerEaton
MaterialGlass Filled Polyethersulfone Case
Mounting TypeChassis/DIN Rail
Response Time10 s at 500%
SeriesTCF
Terminal TypeBlade End
Type / StyleCurrent Limiting Inrush Current Withstand
Voltage Rating600 V AC/300 V DC
Documents
Applications
Power Distribution and Control, Electrical Panel Boards, Machinery Disconnects, Industrial Control and Required Finger Safe System Applications, Industrial Facilities and Factories - Facility, Safety and Security Systems, Datacenter - Facilities, Power Distribution and Control, Commercial/Institutional Buildings/Structures - Critical Power, Stationary Machinery and Equipment Outside Factory - HVAC
Features
- The world's first finger safe power fuse system
- Smallest footprint of any class fuse including class J/CC/T/ RK
- The indicating version features easyID open fuse technology for faster troubleshooting and reduced downtime
- Faster response to damaging faults to help reduce destructive thermal and magnetic forces
- True dual element fuse construction with a minimum of 10 s time delay at 500% of rating
- Long time delay minimizes nuisance circuit openings due to temporary overloads and transient surges
- High 300 kA interrupt rating safely interrupts virtually any fault
- No venting of arc or molten metal and gases during opening
- Robust cycling and inrush current withstand
- Low let-through currents under fault conditions
- Provides type 2 "no damage" in protection for IEC motors starters when properly sized
- Easy selective coordination with any other Bussmann series Low-Peak class CC/J/L/RK1 fuse with simple 2:1 amp ratio between upstream and downstream fuses
