Bussmann Series JKS-45

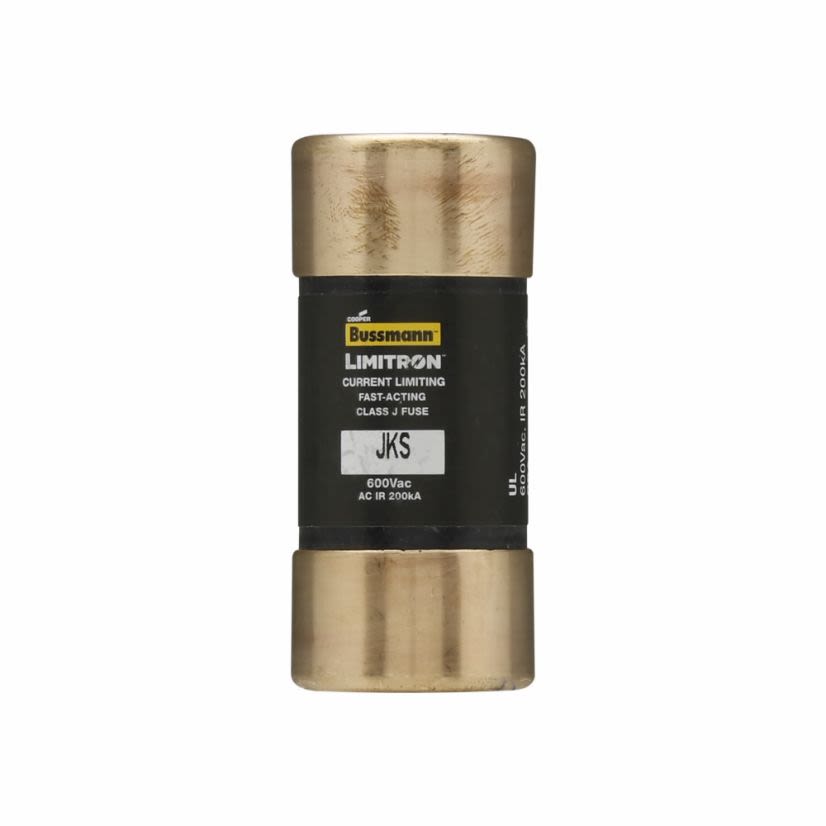

Bussmann Limitron JKS-45 Current Limiting Fast Acting Fuse, 45 A, 600 V, 200 kAIC Interrupt, J Class, Cylindrical Body
Bussmann Series JKS-45
Bussmann Limitron JKS-45 Current Limiting Fast Acting Fuse, 45 A, 600 V, 200 kAIC Interrupt, J Class, Cylindrical BodyNon-stock product. Available to order - lead time may vary.
BrandBussmann Series
MFG #JKS-45
Werner Part #22438
UPC051712630450
Non-stock product. Available to order - lead time may vary.
BrandBussmann Series
MFG #JKS-45
Werner Part #22438
UPC051712630450
Product Description
Bussmann Limitron Fuse, Current Limiting Fast Acting, Series: JKS, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 45 A, 600 V, 200 kAIC Interrupt, Class: J, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Single Element, Melamine, 1.06 in Dia x 2.38 in L Body Size
Attributes
Documents
Applications
Features
Attributes
Body Size1.06 in Dia x 2.38 in L
Body TypeCylindrical
ClassJ
Country of OriginMX
ElementSingle
Indicating/Non-IndicatingNon-Indicating
Interrupt Rating200 kAIC
ManufacturerEaton
MaterialMelamine
Mounting TypeHolder
Rejection/Non-RejectionNon-Rejection
SeriesJKS
Terminal TypeFerrule End
Type / StyleCurrent Limiting
Voltage Rating600 V
Applications
Industrial Facilities and Factories, Safety and Security Systems, Power Panelboards and Machinery Disconnect Applications
Features
- Provides component short circuit protection in compliance with NEC 110-10 where protection devices shall clear a fault without extensive damage to the circuit components
- High interrupt rating helps meet the requirements of future system expansion and the increases in available utility short circuit current
- Fuses can be selectively coordinated with ease
- Current limitation for non-inductive circuits provides class J current limiting response to maximum ground fault and short circuit conditions
- Economical solutions for high fault circuits
- Advanced protection
- 200 kA interrupt rating provides high ratings at all circuit locations
- Protects low interrupting capacity circuit breakers, limits the short circuit current to meet the interrupting capacity requirements of existing equipment
- Well suited for lighting and heating circuits and other non-inductive loads
