Bussmann Series BMM603-2C

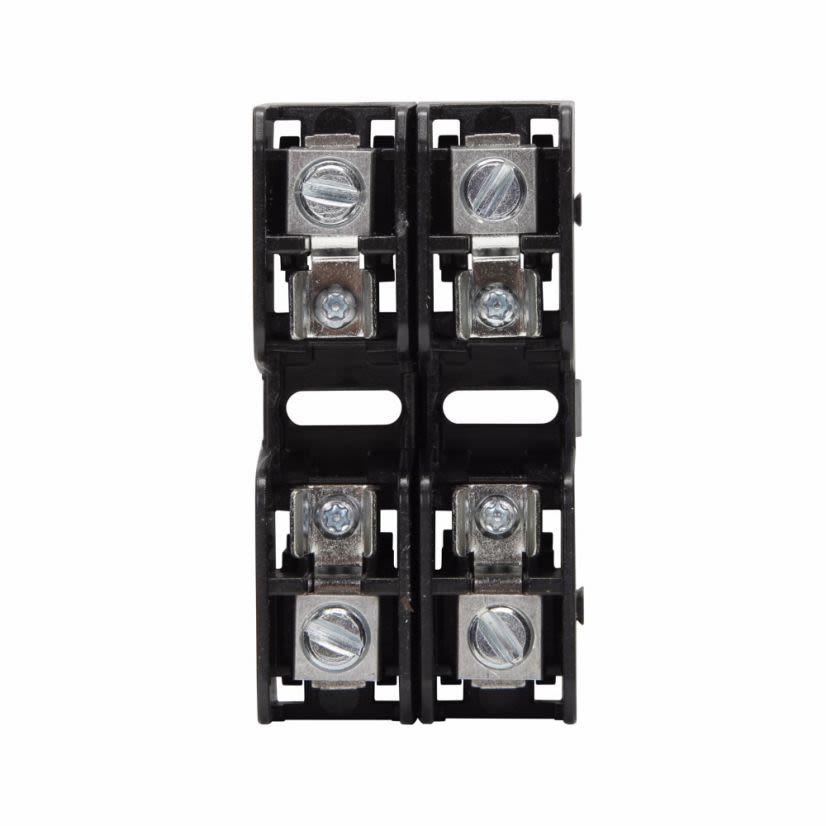

Bussmann BMM603-2C BMM Modular Fuse Block, 600 V, 30 A, 2 Poles
Bussmann Series BMM603-2C
Bussmann BMM603-2C BMM Modular Fuse Block, 600 V, 30 A, 2 PolesNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Bussmann Fuse Block, Modular, Series: BMM, 600 V, 30 A, 2 Pole, Class: Midget, Box Lug/Wired, DIN Rail/Panel Mount, 1-1/2 in Fuse Length, 13/32 in Fuse Dia, -40 to 120 deg C, For Use With: BAF Series 250 V AC Fast Acting, KTK Series 600 V AC Fast Acting, KLM Series 600 V AC/DC Fast Acting, FNM Series 250 V AC Time Delay, FNQ Series 500 V AC Time Delay and Class aM/gG/gL IEC Industrial Fuses, Thermoplastic
Attributes
Documents
Applications
Features
Attributes
ClassMidget
Connection TypeBox Lug/Wired
Country of OriginMX
Fuse Diameter13/32 in
Fuse Length1-1/2 in
ManufacturerEaton
MaterialThermoplastic
Mounting TypeDIN Rail/Panel
Number of Poles2
SeriesBMM
Suitable For Use WithBAF Series 250 V AC Fast Acting, KTK Series 600 V AC Fast Acting, KLM Series 600 V AC/DC Fast Acting, FNM Series 250 V AC Time Delay, FNQ Series 500 V AC Time Delay and Class aM/gG/gL IEC Industrial Fuses
Temperature Rating-40 to 120 deg C
Voltage Rating600 V
Applications
Electrical Assemblies, Panels and EOEMs Applications
Features
- Blocks are fully modular with a snap together design that provides tool less assembly of multiple pole blocks at point-of-use to reduce inventory and save assembly time and labor
- DIN rail and panel mount versatility allows one product to be used for multiple applications with lower inventory cost
- Compact footprint consumes minimal panel space
- Tin plated bimetallic copper fuse clips deliver superior fatigue resistance compared to traditional spring brass
