Bussmann Series 170M1569D

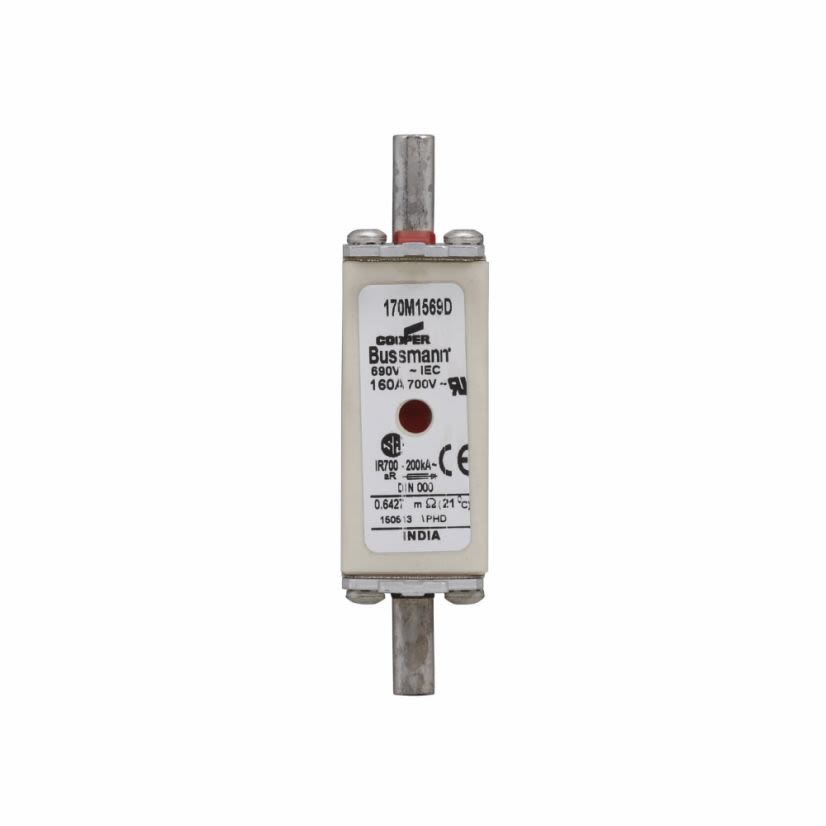

Bussmann 170M1569D Square Body Type T High Speed Fuse, 160 A, 690 V, 200 kA Interrupt, Class: aR, Square Body
Bussmann Series 170M1569D
Bussmann 170M1569D Square Body Type T High Speed Fuse, 160 A, 690 V, 200 kA Interrupt, Class: aR, Square BodyNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Bussmann High Speed Fuse, Square Body Type T, Series: 170M, Non-Indicating, 160 A, 690 V, 200 kA Interrupt, Class: aR, 45 to 1000 Hz Frequency, Din 43-620 Blade End Terminal, Stud Mounting, Square Body, Dual Element, Ceramic, 79 mm L x 21 mm W x 48 mm H Body
Attributes
Documents
Applications
Features
Attributes
Body Size79 mm L x 21 mm W x 48 mm H
Body TypeSquare
ClassaR
Country of OriginSri Lanka
ElementDual
Frequency Rating45 to 1000 Hz
Indicating/Non-IndicatingNon-Indicating
Interrupt Rating200 kA
ManufacturerEaton
MaterialCeramic
Mounting TypeStud
Series170M
Terminal TypeDin 43-620 Blade End
Type / StyleType T
Voltage Rating690 V
Applications
Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter Applications
Features
- Excellent DC performance
- Low arc voltage and low energy let-through
- Low wattage loss
- Superior cycling capability
- Square body DIN 43620 blade high speed fuses with dual indicator system one indicator in the fuse body and another one in the metallic end plate
- Interchangeable with existing high speed DIN 43620 fuses for the protection of UPS, soft starters, solid state relays, variable speed drives, rectifiers and inverters
- Low arc voltage, excellent DC performance, superior cycling capability, designated size 00
