BURNDY YA44A3

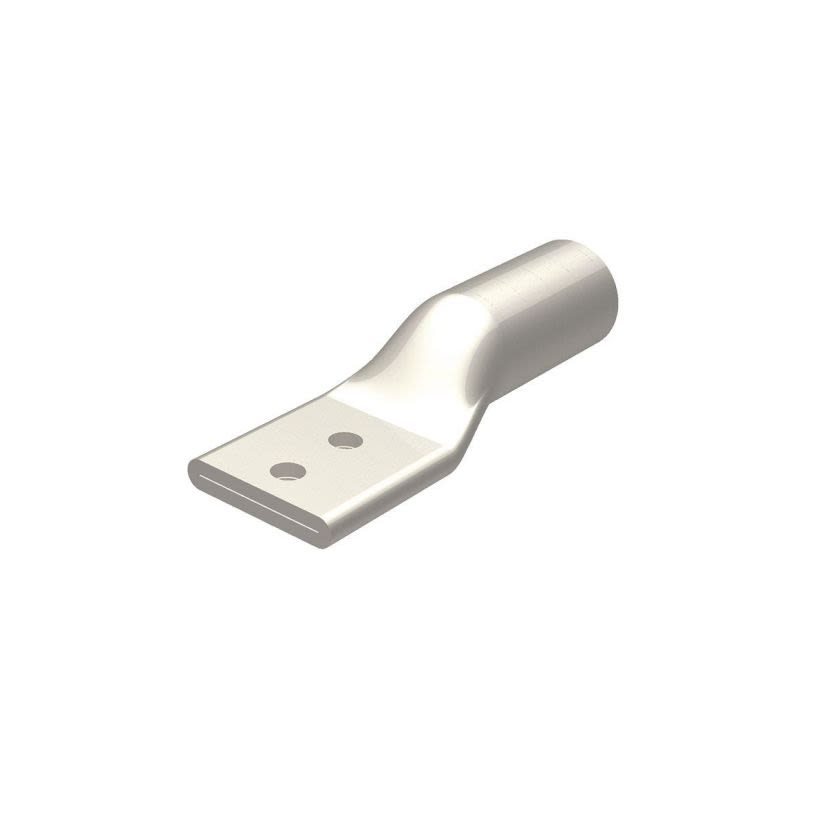

BURNDY HYLUG YA44A3 YA-A 2-Hole Compression Lug
BURNDY YA44A3
BURNDY HYLUG YA44A3 YA-A 2-Hole Compression LugIn Stock: 100more info
|
BrandBURNDY
MFG #YA44A3
Werner Part #356181
UPC781810763001
In Stock: 100more info
|
BrandBURNDY
MFG #YA44A3
Werner Part #356181
UPC781810763001
Product Description
BURNDY HYLUG Compression Lug, 2-Hole, Series: YA-A, Aluminum/Copper Conductor, 1000 kcmil Conductor, Die Code: 302, 600 VAC to 35 kV, 1/2 in Stud, Standard/Straight Tongue, 2.69 in W x 0.39 in THK Tongue, 7.76 in Overall Length, Long/Standard Barrel, 2.74 in L Barrel, 3-11/16 in L Wire Strip, 90 deg C, Aluminum, Brown
Attributes
Documents
Features
Specifications
Attributes
Barrel Size2.74 in L
Barrel TypeLong/Standard
ColorBrown
Conductor size1000 kcmil
Conductor TypeAluminum/Copper
Country of OriginUnited States
Die Code302
MaterialAluminum
Overall Length7.76 in
SeriesYA-A
Stud Size1/2 in
Temperature Rating90 deg C
Tongue Size2.69 in W x 0.39 in THK
Tongue TypeStandard/Straight
Type2-Hole
Voltage Rating600 VAC to 35 kV
Documents
Features
- Provides durable long lasting corrosion-resistance
- 1111 flex (class G, H, I, M) size, 1111 (2750/NO 24) DLO size, 1000 kcmil copper stranded conductor
- Connector is clearly marked with wire size, die index, color code and the proper number and location of crimps
- Provides easy identification and tooling recommendation for a proper compression which forms a homogeneous mass resulting in an excellent electrical connection
- Factory prefilled with PENETROX oxide inhibiting compound
- Oxide inhibiting compound contains homogeneously suspended metallic particles to penetrate the wires oxides, establish electrical continuity and forms an airtight connection
- Prevents foreign materials from entering and contaminating the connector prior to usage plus identifies the proper color coded die for a reliable connection
- Type YA-A 2-hole pads inhibit connector rotation and increase area contact
- Without inspection window
- Barrel is designed with an internal chamfer at the wire entry to ensure smooth insertion of the wire, preventing possible damage of the wire strands during insertion
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Color coded end caps are factory inserted in the barrels to match the die color code and prevent foreign materials from entering the barrel
- Aluminum oxidation is not easily detected but causes resistance in a connection, it is imperative the proper preparation takes place prior to making an aluminum-to-aluminum connection
Specifications
- ARRA Compliant
- BAA Compliant
- RoHS Compliant
- UL Listed
- CSA Certified
- PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
- UL 486A
- UL 486B
- Buy American Act Compliant
