Blackburn CTL20L-38

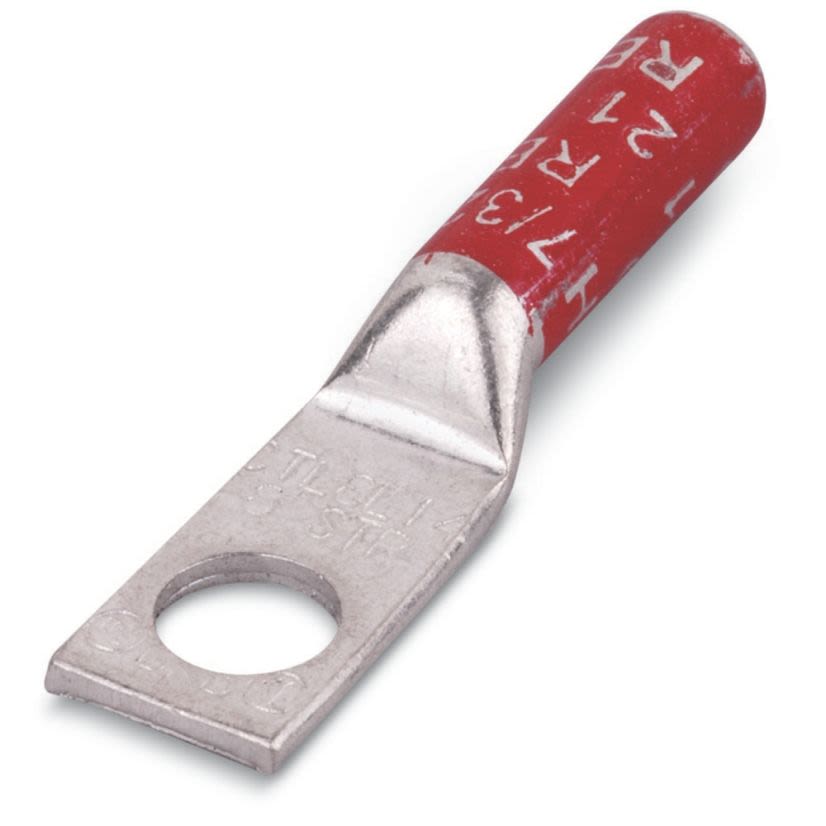

Color-Keyed CTL20L-38 1-Hole Compression Lug, 2/0 AWG Flexible/Stranded Copper Conductor, 3/8 in Stud, Copper
Blackburn CTL20L-38
Color-Keyed CTL20L-38 1-Hole Compression Lug, 2/0 AWG Flexible/Stranded Copper Conductor, 3/8 in Stud, CopperNon-stock product. Available to order - lead time may vary.
BrandBlackburn
MFG #CTL20L-38
Werner Part #17595
UPC783786410378
Non-stock product. Available to order - lead time may vary.
BrandBlackburn
MFG #CTL20L-38
Werner Part #17595
UPC783786410378
Product Description
Color-Keyed Compression Lug, 1-Hole, Series: CTL, Flexible/Stranded Copper Conductor, 2/0 AWG Conductor, 35 kV, 3/8 in Stud, Straight Tongue, 29/32 in L x 13/16 in W x 1/8 in THK Tongue, 2-1/4 in Overall Length, Long Barrel, 1-3/32 in L Barrel, Specifications: Tin Plated, Copper, Black
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel Size1-3/32 in L
Barrel TypeLong
ColorBlack
Conductor size2/0 AWG
Conductor TypeFlexible/Stranded Copper
Country of OriginMX
ManufacturerABB
MaterialCopper
Overall Length2-1/4 in
SeriesCTL
Stud Size3/8 in
Tongue Size29/32 in L x 13/16 in W x 1/8 in THK
Tongue TypeStraight
Type1-Hole
Type / Style1-Hole
Voltage Rating35 kV
Applications
Industrial, Oil Rig, Mining, Welding and Transportation Electrical Termination Applications
Features
- For use with copper conductor AWG, stranded, flexible cable, welding cable and portable cord
- Made of high conductivity seamless copper tubing
- Tin plated for corrosion-resistance
- Specially chamfered barrel for ease of installation
- Color coded for matching die identification
- Can be used for medium voltage application up to 35 kV provided proper insulation techniques are used
- Heavy duty design which permits additional crimp for added mechanical strength
Specifications
Tin Plated
