Blackburn ATL4-38

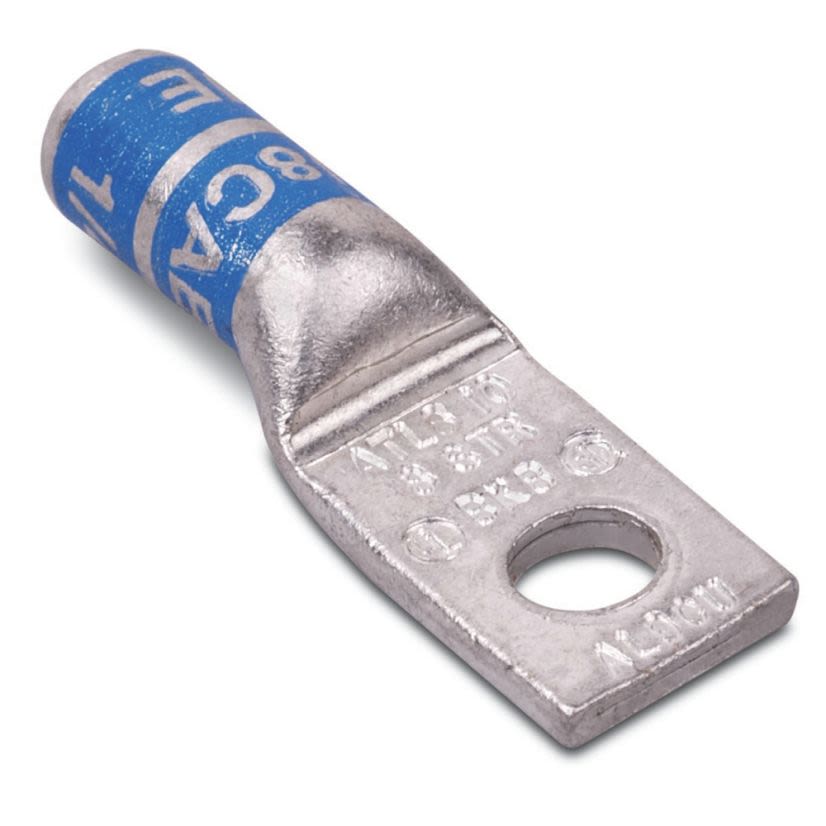

Color-Keyed ATL4-38 1-Hole Compression Lug, 4 AWG Stranded Aluminum/Copper Conductor, 3/8 in Stud, Aluminum
Blackburn ATL4-38
Color-Keyed ATL4-38 1-Hole Compression Lug, 4 AWG Stranded Aluminum/Copper Conductor, 3/8 in Stud, AluminumNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Color-Keyed Compression Lug, 1-Hole, Series: ATL, Stranded Aluminum/Copper Conductor, 4 AWG Conductor, 35 kV, 3/8 in Stud, Straight Tongue, 29/32 in L x 5/8 in W x 3/16 in THK Tongue, 2 in Overall Length, Standard Barrel, 27/32 in L Barrel, Specifications: Tin Plated, Aluminum, Green
Attributes
Documents
Features
Specifications
Attributes
Barrel Size27/32 in L
Barrel TypeStandard
ColorGreen
Conductor size4 AWG
Conductor TypeStranded Aluminum/Copper
Country of OriginMX
ManufacturerABB
MaterialAluminum
Overall Length2 in
SeriesATL
Stud Size3/8 in
Tongue Size29/32 in L x 5/8 in W x 3/16 in THK
Tongue TypeStraight
Type1-Hole
Type / Style1-Hole
Voltage Rating35 kV
Documents
Features
- Specifically designed for use with aluminum conductors (concentric, compressed or compact)
- Also listed for use with copper conductors
- Made of high conductivity seamless aluminum tubing
- Chamfered barrels for ease of installation
- Can be used for medium voltage application up to 35 kV provided proper insulation techniques are used
- Color coded for quick, easy die identification
- Prefilled with oxide-inhibitor
- Tin plated for corrosion-resistance
Specifications
Tin Plated
