Belden 8762

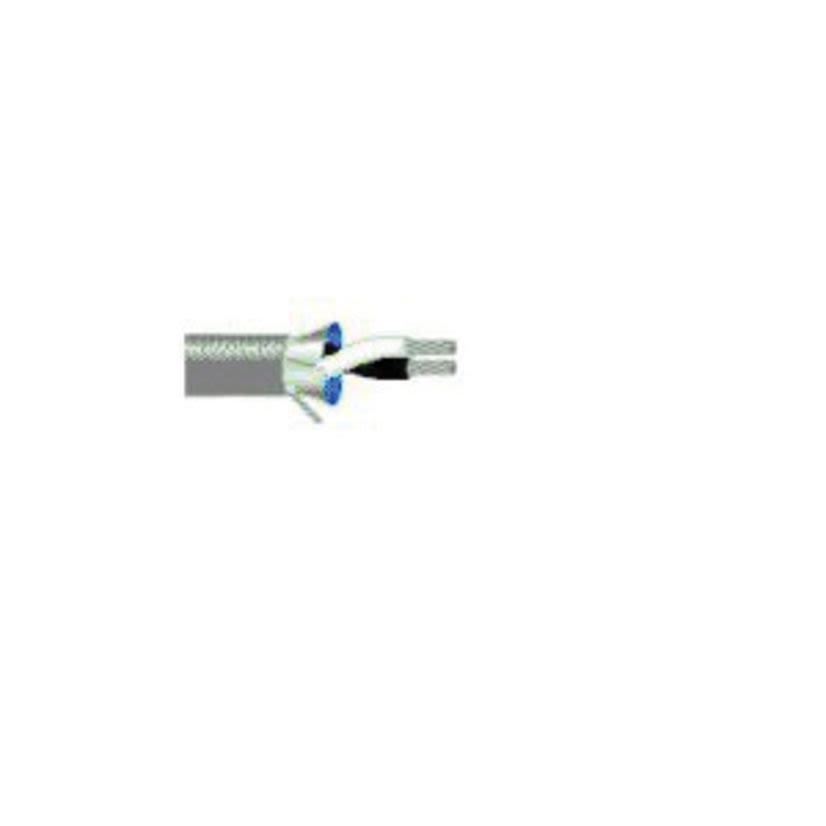

Belden 8762 Audio Multi-Conductor Non-Plenum Shielded Control/Instrumentation Cable, 300 V AC, (2) 20 AWG Stranded Tinned Copper Conductor
Belden 8762
Belden 8762 Audio Multi-Conductor Non-Plenum Shielded Control/Instrumentation Cable, 300 V AC, (2) 20 AWG Stranded Tinned Copper ConductorNon-stock product. Available to order - lead time may vary.
BrandBelden
MFG #8762
Werner Part #18070
Non-stock product. Available to order - lead time may vary.
BrandBelden
MFG #8762
Werner Part #18070
Product Description
Belden Control/Instrumentation Cable, Audio Multi-Conductor Non-Plenum Shielded, Series: 8762, 300 V AC, 3.9 A, 2 Conductors, Stranded Tinned Copper Conductor, 20 AWG Conductor, 5.182 mm OD, 7/28 Strands, Polyethylene Insulation, PVC Jacket, Chrome Jacket, -20 to 60 deg C
Attributes
Documents
Applications
Features
Specifications
Attributes
Conductor size20 AWG
Conductor TypeStranded Tinned Copper
Insulation MaterialPolyethylene
Jacket ColorChrome
Jacket MaterialPVC
ManufacturerBelden
Number of Conductors2
Outside Diameter5.182 mm
Packaging TypeCrate Reel
Series8762
Strands7/28
Temperature Rating-20 to 60 deg C
TypeAudio Multi-Conductor Non-Plenum Shielded
Voltage Rating300 V AC
Applications
Indoor Applications
Features
- Overall Beldfoil outer shield (100% coverage)
- 204.617 N maximum recommended pulling tension
- 57.15 mm minimum bend radius/minor axis
- 88.587 pF/m nominal conductor to conductor capacitance
- 160.769 pF/m nominal conductor to other conductor and shield capacitance
- 31.1695 Ohm/km at 20 deg C nominal conductor DC resistance
- 20 AWG stranded tinned copper drain wire
- Twisted pairs, 50.8 mm cabling lay length, 19.686 twists/m, left hand direction
Specifications
Standards/Approvals: UL, ANATEL, COFETEL, IC Listed, CSA, NOM Certified, FCC Approved
