Belden 3079A-0071000

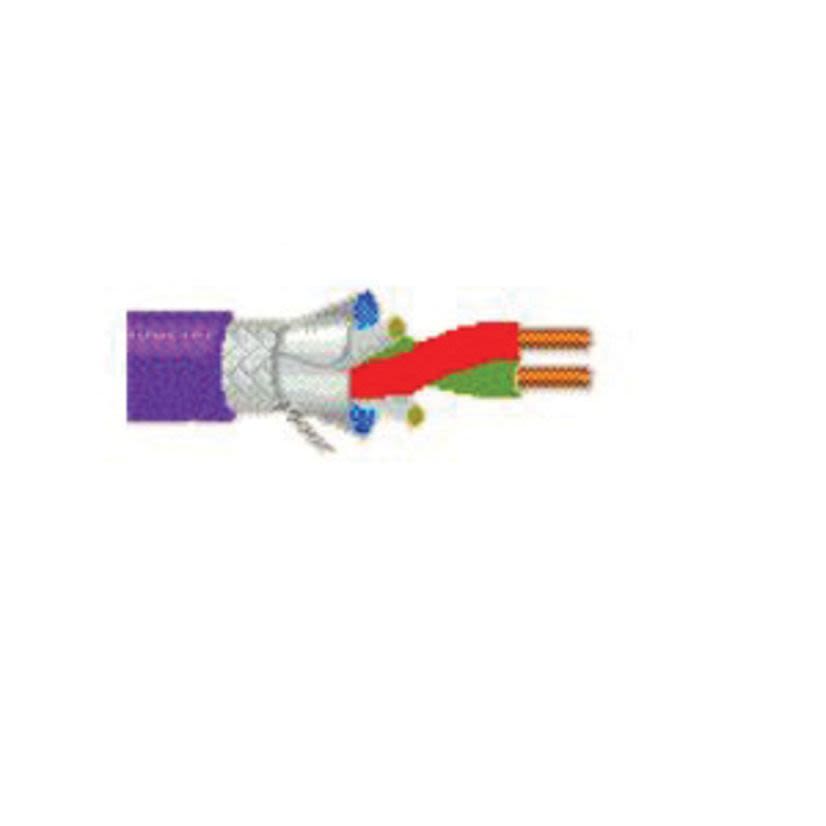

Belden 3079A-0071000 Multi-Conductor Data Cable, 300 V AC, (2) 22 AWG Bare Solid Copper Conductor, 1000 ft L
Belden 3079A-0071000
Belden 3079A-0071000 Multi-Conductor Data Cable, 300 V AC, (2) 22 AWG Bare Solid Copper Conductor, 1000 ft LNon-stock product. Available to order - lead time may vary.
BrandBelden
MFG #3079A-0071000
Werner Part #4145660
Non-stock product. Available to order - lead time may vary.
BrandBelden
MFG #3079A-0071000
Werner Part #4145660
Product Description
Belden Data Cable, Multi-Conductor, 300 V AC, 2 Conductors, Bare Solid Copper Conductor, 22 AWG Conductor, 0.315 in OD, 1000 ft Length, 16 Ohm Resistance, Polyethylene Insulation, PVC Jacket, Violet Jacket, -30 to 75 deg C
Attributes
Documents
Applications
Features
Specifications
Attributes
Conductor size22 AWG
Conductor TypeBare Solid Copper
Insulation MaterialPolyethylene
Jacket ColorViolet
Jacket MaterialPVC
ManufacturerBelden
Number of Conductors2
Outside Diameter0.315 in
Resistance16 Ohm
Temperature Rating-30 to 75 deg C
TypeMulti-Conductor
Voltage Rating300 V AC
Applications
CCTV Plus Audio or Power or Pan and Tilt CCTV Control
Features
- Beldfoil aluminum foil polyester tape (100% coverage)
- 65% braid tinned copper outer shield material
- Sunlight-resistant jacket
- 2-3/4 in lay length and direction
- 50 lb maximum recommended pulling tension
- 3.2 in minimum bend radius/minor axis
- 8.5 pF/ft nominal mutual capacitance
- 78% nominal velocity of propagation
- 16 Ohm/1000 ft nominal conductor DC resistance
Specifications
Standards/Approvals: UL 1666, UL FT4, CE Certified, RoHS Compliant
