Belden 8761

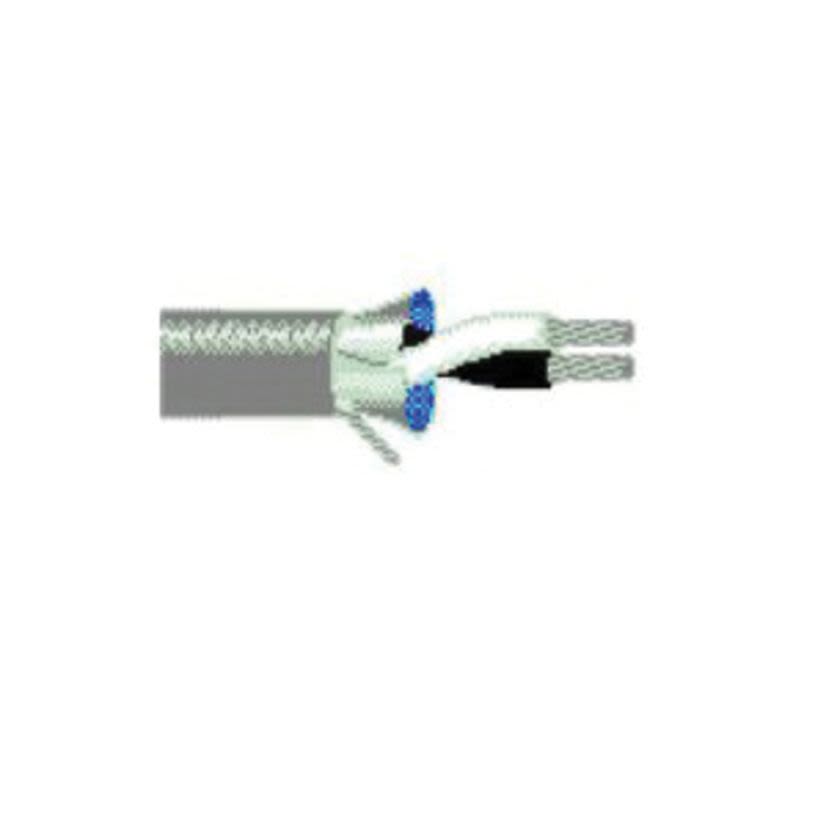

Belden 8761 Audio Multi-Conductor Non-Plenum Shielded Control/Instrumentation Cable, 300 V AC, (2) 22 AWG Stranded Tinned Copper Conductor
Belden 8761
Belden 8761 Audio Multi-Conductor Non-Plenum Shielded Control/Instrumentation Cable, 300 V AC, (2) 22 AWG Stranded Tinned Copper ConductorIn Stock: 1095more info
|
BrandBelden
MFG #8761
Werner Part #3915461
In Stock: 1095more info
|
BrandBelden
MFG #8761
Werner Part #3915461
Product Description
Belden Control/Instrumentation Cable, Audio Multi-Conductor Non-Plenum Shielded, Series: 8761, 300 V AC, 2.9 A, 2 Conductors, Stranded Tinned Copper Conductor, 22 AWG Conductor, 0.175 in OD, 7/30 Strands, Polyethylene Insulation, PVC Jacket, Chrome Jacket, -20 to 60 deg C
Attributes
Documents
Applications
Features
Specifications
Attributes
Conductor size22 AWG
Conductor TypeStranded Tinned Copper
Insulation MaterialPolyethylene
Jacket ColorChrome
Jacket MaterialPVC
ManufacturerBelden
Number of Conductors2
Outside Diameter0.175 in
Series8761
Strands7/30
Temperature Rating-20 to 60 deg C
TypeAudio Multi-Conductor Non-Plenum Shielded
Voltage Rating300 V AC
Applications
Indoor Applications
Features
- Overall Beldfoil inner shield (100% coverage)
- 27 lb maximum recommended pulling tension
- 1-3/4 in minimum bend radius/minor axis, 0.2 uH/ft inductance, 24 pF/ft nominal conductor to conductor capacitance
- 47 pF/ft nominal conductor to other conductor and shield capacitance
- 16 Ohm/1000 ft at 20 deg C nominal conductor DC resistance
- 22 AWG stranded tinned copper drain wire
- 2 in cabling lay length, 6 twists/ft, left hand direction
Specifications
- UL, ANATEL, COFETEL, IC Listed
- CSA Certified
- NOM Certified
- FCC Approved
