Belden 3106A 0101000

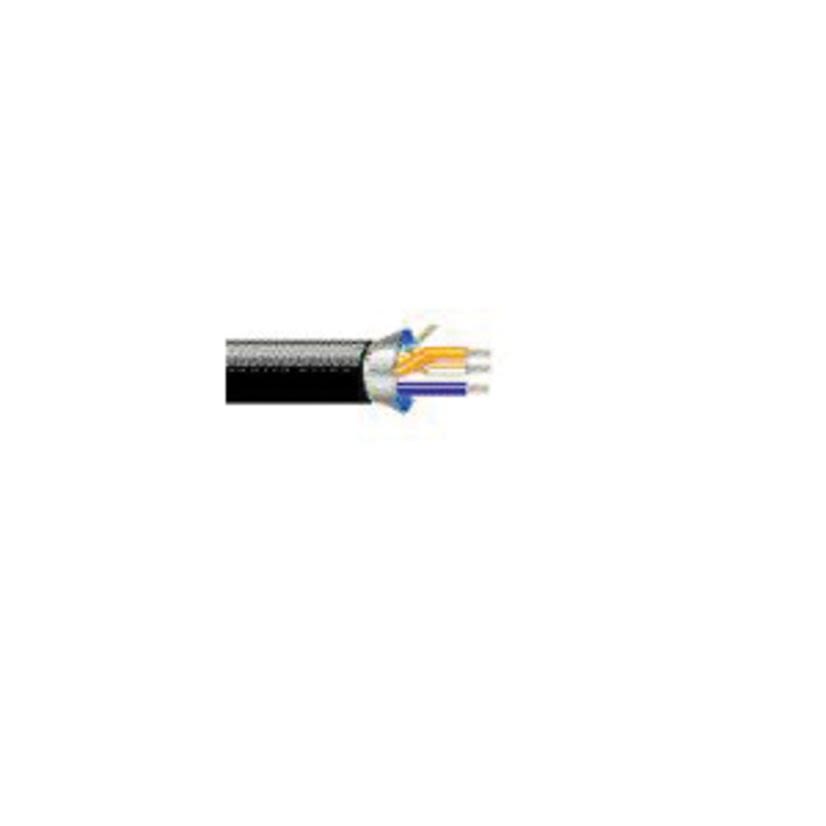

Belden 3106A 0101000 Type PLTC/CM Multi-Conductor Shielded Cable, 300 V AC, (3) 22 AWG Stranded Tinned Copper Conductor, 1000 ft L
Belden 3106A 0101000
Belden 3106A 0101000 Type PLTC/CM Multi-Conductor Shielded Cable, 300 V AC, (3) 22 AWG Stranded Tinned Copper Conductor, 1000 ft LNon-stock product. Available to order - lead time may vary.
BrandBelden
MFG #3106A 0101000
Werner Part #3992798
UPC61282514165
Non-stock product. Available to order - lead time may vary.
BrandBelden
MFG #3106A 0101000
Werner Part #3992798
UPC61282514165
Product Description
Belden Cable, Type PLTC/CM Multi-Conductor Shielded, Series: 3106A, 300 V AC, 2.7 A, 3 Conductors, Stranded Tinned Copper Conductor, 22 AWG Conductor, 7.62 mm OD, 1000 ft Length, 7/30 Strands, 48.2307 Ohm Resistance, Polyethylene Insulation, PVC Jacket, Black Jacket, -20 to 60 deg C
Attributes
Documents
Features
Specifications
Attributes
Conductor size22 AWG
Conductor TypeStranded Tinned Copper
Insulation MaterialPolyethylene
Jacket ColorBlack
Jacket MaterialPVC
ManufacturerBelden
Number of Conductors3
Outside Diameter7.62 mm
Resistance48.2307 Ohm
Series3106A
Strands7/30
Temperature Rating-20 to 60 deg C
TypeType PLTC/CM Multi-Conductor Shielded
Voltage Rating300 V AC
Features
- Beldfoil aluminum foil-polyester tape outer shield material(100% coverage), braid tinned copper(65% coverage)
- 289.133 N maximum recommended pulling tension
- 76.2 mm minimum bend radius/minor axis
- 36.091 pF/ft nominal capacitance conductor to conductor
- 68.5729 pF/ft nominal capacitance conductor to other conductor and shield
- 78% nominal velocity of propagation
- Twisted pair stranded tinned copper conductor
- Foam high-density polyethylene insulation material
Specifications
- UL Listed
- CE Certified
- NEC Certified
- CEC Certified
- RoHS Compliant
