Appleton EFDC175-3MS

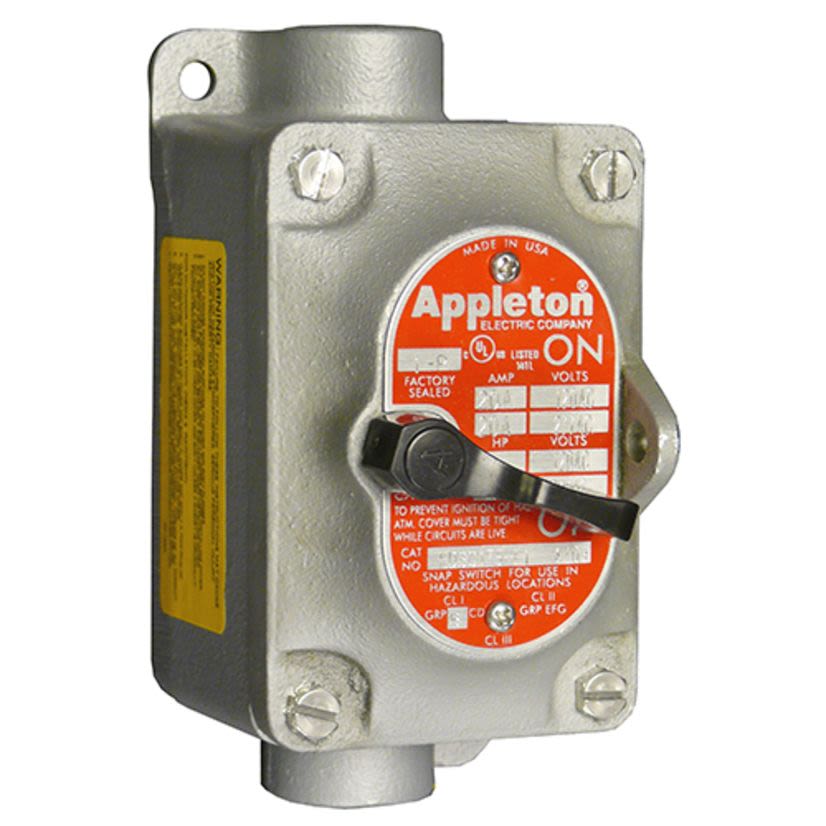

Appleton EFDC175-3MS Dust-Ignitionproof Explosionproof Manual Motor Contactor, 600 V AC Coil, 30 A, 3 Poles
Appleton EFDC175-3MS
Appleton EFDC175-3MS Dust-Ignitionproof Explosionproof Manual Motor Contactor, 600 V AC Coil, 30 A, 3 PolesNon-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #EFDC175-3MS
Werner Part #3781381
UPC781381274104
Non-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #EFDC175-3MS
Werner Part #3781381
UPC781381274104
Product Description
Appleton Manual Motor Contactor, Dust-Ignitionproof Explosionproof, 600 V AC Coil, 30 A Maximum Load, 15 hp Coil Power Rating, 3 Pole, NEMA 3/3R, Malleable Iron, Gray, Epoxy Powder Coated
Attributes
Documents
Applications
Warranty
Features
Attributes
Coil Power Rating15 hp
Coil Voltage600 V AC
ColorGray
Country of OriginMX
Enclosure TypeNEMA 3/3R
FinishEpoxy Powder Coated
Full Load CurrentMax: 30 A
ManufacturerEmerson Electric
MaterialMalleable Iron
Maximum Load Current30 A
Number of Poles3
Package TypeEACH
Type / StyleDust-Ignitionproof Explosionproof
Applications
For EDS series manual motor control station and hazardous locations
Warranty
5 Years
Features
- Easily readable operator handle with provisions for padlocking in the On/Off position
- Cast in hubs
- Interchangeable heater units
- They may be used to install a variety of electrical wiring devices and comes complete with covers and dead-end or feed through hub arrangements
- Complete units are ideal for manual starting of small VAC or VDC motors in locations made hazardous by the presence of flammable vapors, gases or combustible dust
- Non-factory sealed
- Without heater options
- 3 hp at 120 VAC, 7-1/2 hp at 240 VAC, 15 hp at 480/600 VAC
