Appleton EDSF32Q

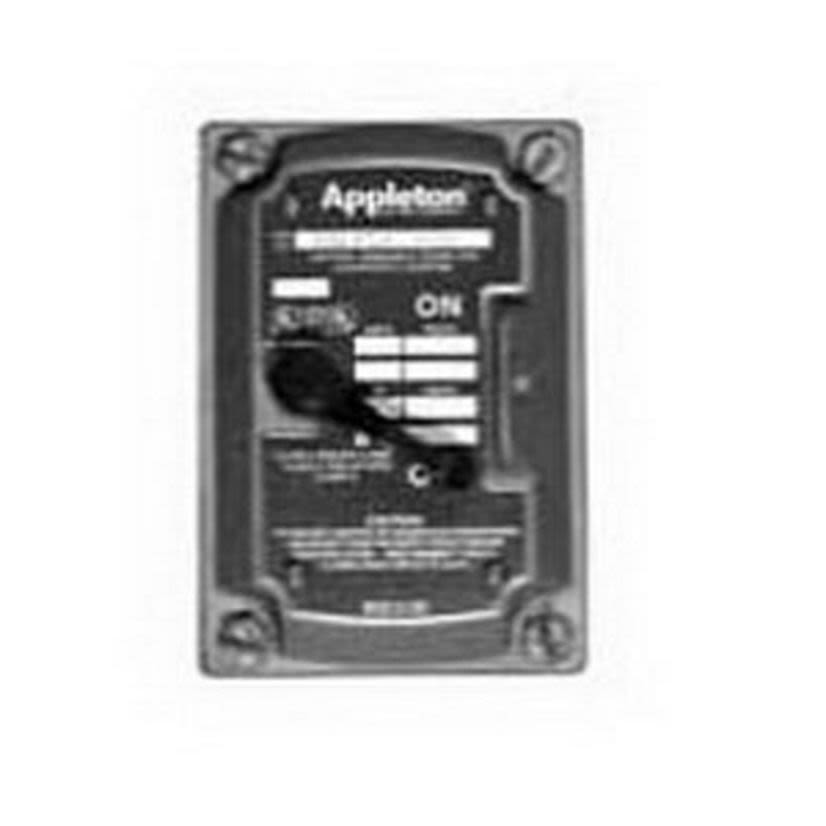

Appleton Contender EDSF32Q Sealed Tumbler Switch Control Station, 120/277 V AC, 30 A, NEMA 3/7CD/9EFG NEMA Rating
Appleton EDSF32Q
Appleton Contender EDSF32Q Sealed Tumbler Switch Control Station, 120/277 V AC, 30 A, NEMA 3/7CD/9EFG NEMA RatingNon-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #EDSF32Q
Werner Part #4089431
UPC781381709620
Non-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #EDSF32Q
Werner Part #4089431
UPC781381709620
Product Description
Appleton Contender Tumbler Switch Control Station, Sealed, Series: EDS, 120/277 V AC, 30 A, 2 Pole, Front Operated Lever Actuator, Thread Connection, NEMA 3/7CD/9EFG NEMA Rating, Surface Mounting, Malleable Iron, Triple Coated
Attributes
Documents
Applications
Included
Warranty
Features
Attributes
Actuator TypeFront Operated Lever
Connection TypeThread
Country of OriginMX
FinishTriple Coated
ManufacturerEmerson Electric
MaterialMalleable Iron
Mounting TypeSurface
NEMA RatingNEMA 3/7CD/9EFG
Number of Poles2
Package TypeEACH
SeriesEDS
Type / StyleSealed
Applications
For prevent arcing of enclosed switches in ignitable atmospheres, chemical plants, petrochemical plants, refineries and other process industries
Included
Internal Ground Screw
Warranty
5 Years
Features
- Enclosures have external mounting lugs for ease of mounting
- Smooth, rounded integral bushing in each hub protects conductor insulation
- Enclosures furnished with internal ground screw
- Smooth ground mating surfaces assure flame-tight joint between cover and mounting enclosure
- Stainless steel hex head cap screws for attaching cover to mounting enclosure
- Handle has close tolerance threaded stainless steel shaft to meet explosionproof requirements
- Explosion proof dust-ignitionproof
- Surface mount with 1/2 in dead-end hub, 1 HP at 120 VAC and 2 HP at 240 VAC
