Appleton EDSC2140

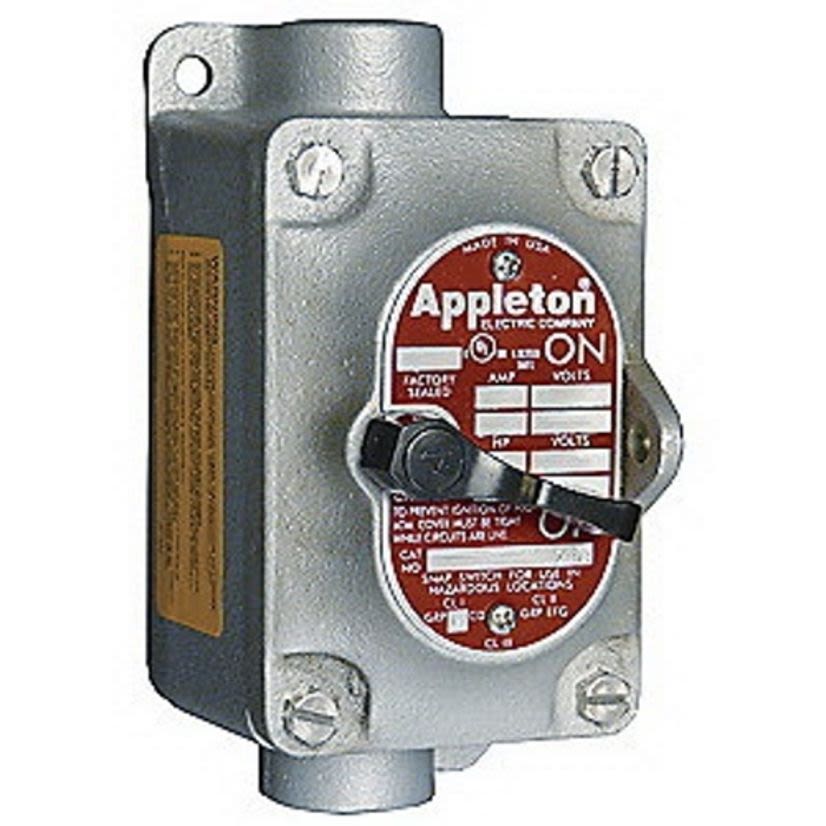

Appleton Contender EDSC2140 1-Gang Feed-Through Tumbler Switch Control Station, 120/277 V AC, 20 A, NEMA 3/7CD/9EFG NEMA Rating
Appleton EDSC2140
Appleton Contender EDSC2140 1-Gang Feed-Through Tumbler Switch Control Station, 120/277 V AC, 20 A, NEMA 3/7CD/9EFG NEMA RatingNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Appleton Contender Tumbler Switch Control Station, 1-Gang Feed-Through, Series: EDS, 120/277 V AC, 20 A, Legend: On/Off, Front Operated Lever Actuator, Thread Connection, NEMA 3/7CD/9EFG NEMA Rating, Surface Mounting, Malleable Iron, Triple Coated, 6.81 in H x 3.72 in W x 5.31 in D Dimensions
Attributes
Documents
Applications
Included
Warranty
Features
Attributes
Actuator TypeFront Operated Lever
Connection TypeThread
Country of OriginMX
Dimensions6.81 in H x 3.72 in W x 5.31 in D
FinishTriple Coated
ManufacturerEmerson Electric
MaterialMalleable Iron
Mounting TypeSurface
NEMA RatingNEMA 3/7CD/9EFG
Package TypeEACH
SeriesEDS
Type / Style1-Gang Feed-Through
Documents
Applications
Used in classified areas where ignitable vapors, gases or highly combustible dusts are present
Included
Internal Ground Screw
Warranty
1 Year
Features
- Corrosion resistant, pad lockable in the on or off position
- Enclosures have external mounting lugs for ease of mounting
- Smooth, rounded integral bushing in each hub protects conductor insulation
- Enclosures furnished with internal ground screw
- Smooth ground mating surfaces assure flame-tight joint between cover and mounting enclosure
- Stainless steel hex head screws attach sealing chamber to cover and mounting enclosure
- Each handle has close-tolerance threaded stainless steel shaft to meet explosion proof requirements
- Designed to prevent arcing of enclosed switches in ignitable atmospheres during connect and disconnect operation of lighting and light power loads
- Explosion proof dust-ignitionproof
