Appleton EDS175-F3W3

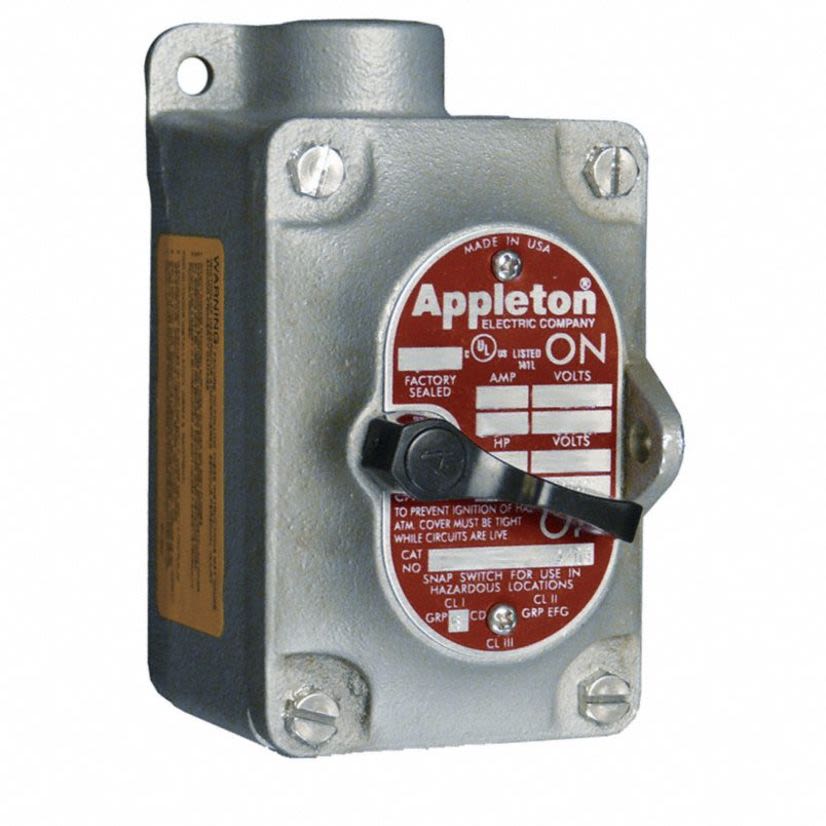

Appleton UNILETS EDS175-F3W3 1-Gang 3-Way Dead End Explosionproof Tumbler Switch, 120 to 277 V AC, 30 A, NEMA 7BCD/9EFG NEMA Rating
Appleton EDS175-F3W3
Appleton UNILETS EDS175-F3W3 1-Gang 3-Way Dead End Explosionproof Tumbler Switch, 120 to 277 V AC, 30 A, NEMA 7BCD/9EFG NEMA RatingNon-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #EDS175-F3W3
Werner Part #3818205
UPC781381450195
Non-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #EDS175-F3W3
Werner Part #3818205
UPC781381450195
Product Description
Appleton UNILETS Explosionproof Tumbler Switch, 1-Gang 3-Way Dead End, Series: EDS, 120 to 277 V AC, 30 A, Lever Actuator, Thread Connection, NEMA 7BCD/9EFG NEMA Rating, Surface Mounting, Malleable Iron, Triple Coated, 5.38 in H x 3 in W x 4.69 in D Dimensions
Attributes
Documents
Applications
Included
Warranty
Features
Attributes
Actuator TypeLever
Connection TypeThread
Country of OriginMX
Dimensions5.38 in H x 3 in W x 4.69 in D
FinishTriple Coated
ManufacturerEmerson Electric
MaterialMalleable Iron
Mounting TypeSurface
NEMA RatingNEMA 7BCD/9EFG
Package TypeEACH
SeriesEDS
Type / Style1-Gang 3-Way Dead End
Documents
Applications
Used in classified areas where ignitable vapors, gases or highly combustible dusts are present and installed in chemical plants, petrochemical plants, refineries and other process industries
Included
Internal Ground Screw
Warranty
Limited
Features
- Enclosures have external mounting lugs for ease of mounting
- Smooth, rounded integral bushing in each hub protects conductor insulation
- Enclosures furnished with internal ground screw
- Factory sealed switches are designed to a UL standard so that any arcing devices are contained within an explosionproof labyrinth switch
- Tumbler switch devices are approved for installation without additional external sealing fittings
- 20 A 4-way and all 30 A models utilize a switch enclosed in separate sealing chamber
- Smooth double face, accurately ground surfaces on sealing chamber flange mate with cover and body to provide positive flametight construction
- Sealing chamber has prewired factory sealed pigtail leads to switch
- Threaded stainless steel operating handle provides positive corrosion resistant operation
- Corrosion resistant, strong stainless steel hex head cap screws attach cover or body or sealing chamber assembly for approved flame-tight construction
- Pad lockable in the on or off position
