Appleton BLR200-M

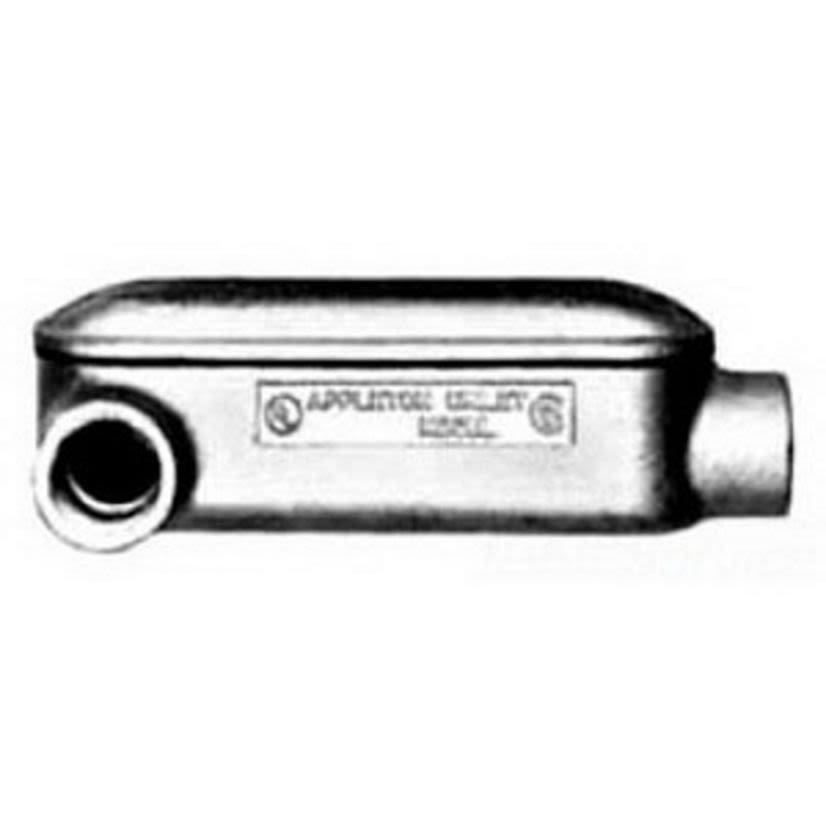

Emerson Electric Appleton® Unilet® BLR200-M Type LR Conduit Body, 2 in Hub, 134 cu-in, Malleable Iron, Tri-Coated
Appleton BLR200-M
Emerson Electric Appleton® Unilet® BLR200-M Type LR Conduit Body, 2 in Hub, 134 cu-in, Malleable Iron, Tri-CoatedNon-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #BLR200-M
Werner Part #3791785
UPC781381463614
Non-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #BLR200-M
Werner Part #3791785
UPC781381463614
Product Description
Emerson Electric Appleton® Unilet® Conduit Body, Type LR, 2 in Hub, 2 Hubs, 134 cu-in, NEMA FB-1 Enclosure, Tapered FNPT, Malleable Iron, Tri-Coated, 14.63 in L x 4.13 in W
Attributes
Documents
Features
Attributes
Capacity134 cu-in
Connection TypeTapered FNPT
Country of OriginMexico
Dimensions14.63 in L x 4.13 in W
Enclosure TypeNEMA FB-1
FinishTri-Coated
Hub Size2 in
ManufacturerEmerson Electric
MaterialMalleable Iron
Number of Hubs2
Type / StyleType LR
Documents
Features
Larger body size facilitates pulling of large and heavy conductorsSpecially designed raised cast covers provide additional wiring areaMogul UNILETS™ for pulling straight, 45 or 90 deg angle turns and/or making taps and splicesExclusive built-in rollers facilitate cable pullingSmooth, rounded integral bushing in each hub protects conductor insulationAccurately tapped, tapered hub threads for tight, rigid joints and ground continuityCovers have captive stainless steel screws to speed installation, prevent freezing of screwsMogul have an end hubThe second hub is in the side (LL left and LR right) instead of the backFor use with threaded rigid/IMC metal conduitTriple coated (zinc electroplated, chromate and epoxy powder coated)Length requirement distance between centerline of each hub bushing (conduit stop) exceeds six times the trade diameter of the conduit per NEC 314.28(A)(2)
