Appleton ADR3034RS

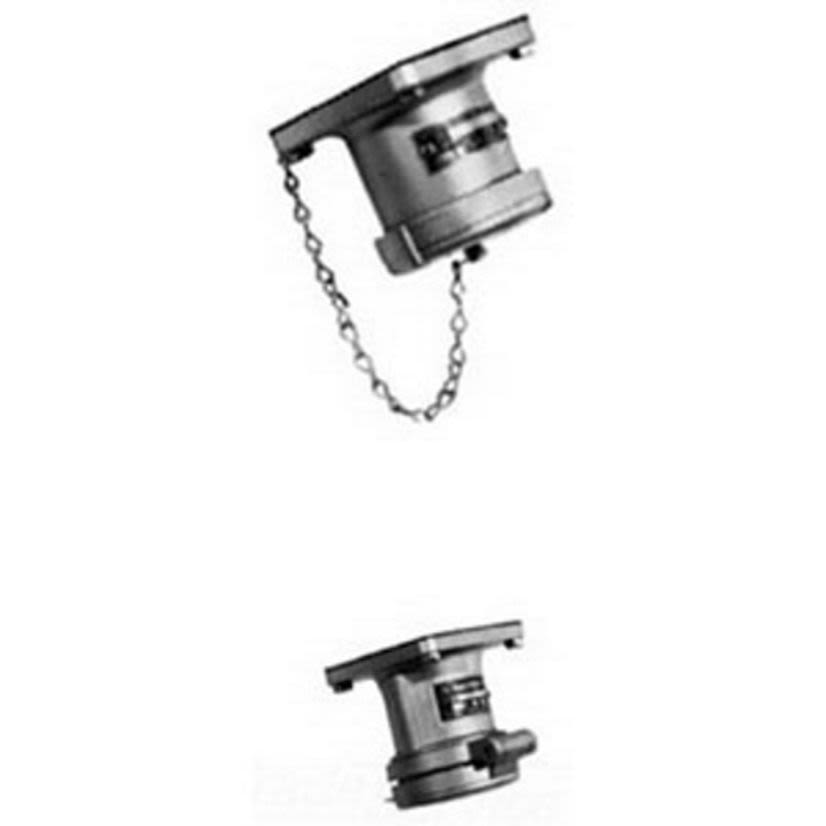

Emerson Electric Appleton® Powertite® ADR3034RS 3-Phase Grounding Style 2 Pin and Sleeve Receptacle With Spring Door and Reverse Service, 600/250 VAC/VDC, 30 A, 4 Poles, 3 Wires
Appleton ADR3034RS
Emerson Electric Appleton® Powertite® ADR3034RS 3-Phase Grounding Style 2 Pin and Sleeve Receptacle With Spring Door and Reverse Service, 600/250 VAC/VDC, 30 A, 4 Poles, 3 WiresNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Appleton® Powertite® Pin and Sleeve Receptacle, 3-Phase Grounding Style 2, Series: ADR, 600/250 VAC/VDC, 30 A, 20 hp, 50/400 Hz, 4 Pole, 3 Wires, NEMA 3/3R/4/4X, -40 to 225 deg F, Pressure Wired Terminal, Copper-Free Aluminum, 2.8 in H x 3.38 in W
Attributes
Documents
Features
Specifications
Attributes
Country of OriginMexico
Dimensions2.8 in H x 3.38 in W
Frequency Rating50/400 Hz
Horsepower20 hp
ManufacturerEmerson Electric
MaterialCopper-Free Aluminum
NEMA RatingNEMA 3/3R/4/4X
Number of Poles4
Number of Wires3
SeriesADR
Temperature Rating-40 to 225 deg F
Terminal TypePressure Wire
Type3-Phase Grounding Style 2
Type / Style3-Phase Grounding Style 2
Voltage Rating600/250 VAC/VDC
Documents
Features
Neoprene bushing compressed by cable collar prevents entrance of water, bushing is highly resistant to hydrocarbon deterioration and is self extinguishingLocking screw and slot prevents plug cable collar from "backing off"Contacts exert constant pressure along entire contact surface and provide electrical continuityInsulating blocks provide greatest dielectric and mechanical strength and lowest arc trackingControlled length contacts ensure that ground makes first and breaks last for added safety
Specifications
Standards/Approvals: UL 1682|UL 1686|UL 50E File No. E145916/E145917|CSA C22.2 No. 182.1|CSA File No. 065179
