Appleton ACP15034CD

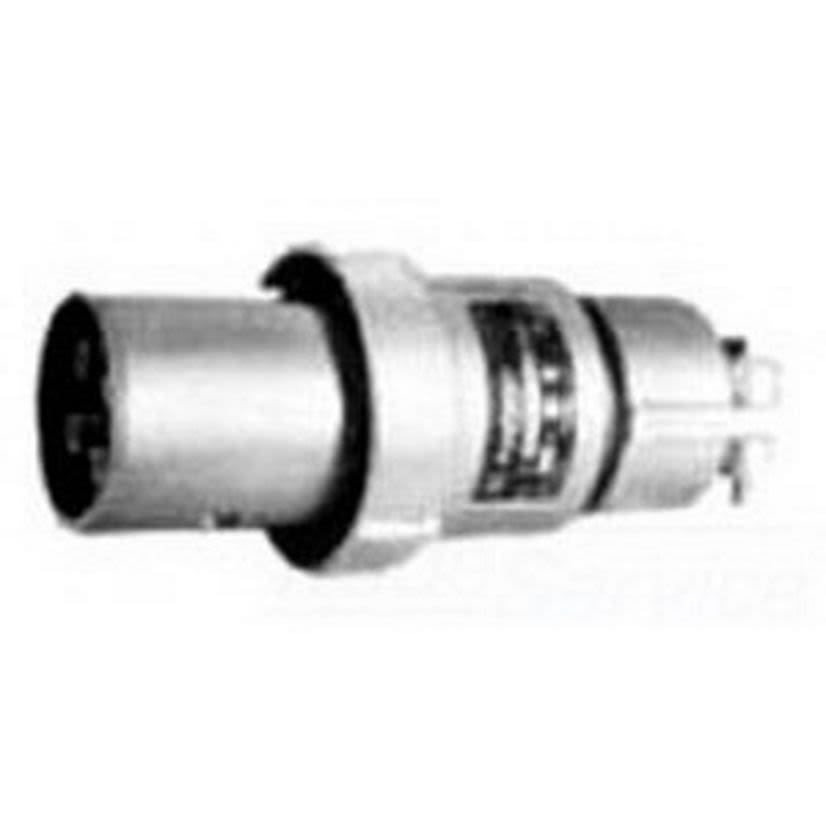

Appleton Powertite ACP15034CD ACP 3-Phase Grounding Style 2 Clamping Ring Plug, 250/600 V AC/V DC, 150 A, 4 Poles, 3 Wires
Appleton ACP15034CD
Appleton Powertite ACP15034CD ACP 3-Phase Grounding Style 2 Clamping Ring Plug, 250/600 V AC/V DC, 150 A, 4 Poles, 3 WiresNon-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #ACP15034CD
Werner Part #3879657
UPC781381098571
Non-stock product. Available to order - lead time may vary.
BrandAppleton
MFG #ACP15034CD
Werner Part #3879657
UPC781381098571
Product Description
Appleton Powertite Clamping Ring Plug, 3-Phase Grounding Style 2, Series: ACP, 250/600 V AC/V DC, 150 A, 50/400 Hz Frequency, 4 Pole, 3 Wires, NEMA 3/3R/4/4X NEMA Rating, -40 to 225 deg F, Pressure Wire Terminal, Copper Free Aluminum, 10-1/2 in L x 4-1/4 in W Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Country of OriginMX
Dimensions10-1/2 in L x 4-1/4 in W
Frequency Rating50/400 Hz
ManufacturerEmerson Electric
MaterialCopper Free Aluminum
NEMA RatingNEMA 3/3R/4/4X
Number of Poles4
Number of Wires3
Package TypeEACH
SeriesACP
Temperature Rating-40 to 225 deg F
Terminal TypePressure Wire
Type3-Phase Grounding Style 2
Type / Style3-Phase Grounding Style 2
Voltage Rating250 V AC/600 V DC
Documents
Applications
ADR15034 Receptacle and ARC15034CD Connector Body, Motor Generator Units, Welders, Pumps, Compressors, Cellular Relay Stations, Shipping Docks, Ports, Ship to Shore and Rough Usage Construction Applications
Warranty
Limited
Features
- Shell and extra pole grounding style 2
- Designed to supply power to portable or fixed electrical equipment
- Insulating blocks provide greatest dielectric and mechanical strength and lowest arc tracking
- Natural finish glass filled polyester insulating blocks
- 0.525 in dia wire recess
- Plug and receptacle combination is NEMA 4X rated when clamping ring is fully tightened on receptacle
- Locking screw and slot prevents plug cable collar from "backing off"
- Controlled length contacts ensure that ground makes first and breaks last for added safety
- Contacts exert constant pressure along entire contact surface and provide electrical continuity
- Neoprene bushing compressed by cable collar prevents entrance of water, bushing is highly resistant to hydrocarbon deterioration and is self extinguishing
Specifications
Standards/Approvals: UL 1682|UL 1686|UL 50E File No. E145916/E145917|CSA C22.2 No. 182.1|CSA File No. 065179|RoHS Compliant
