Werner Hospital Grade MCAP Cable

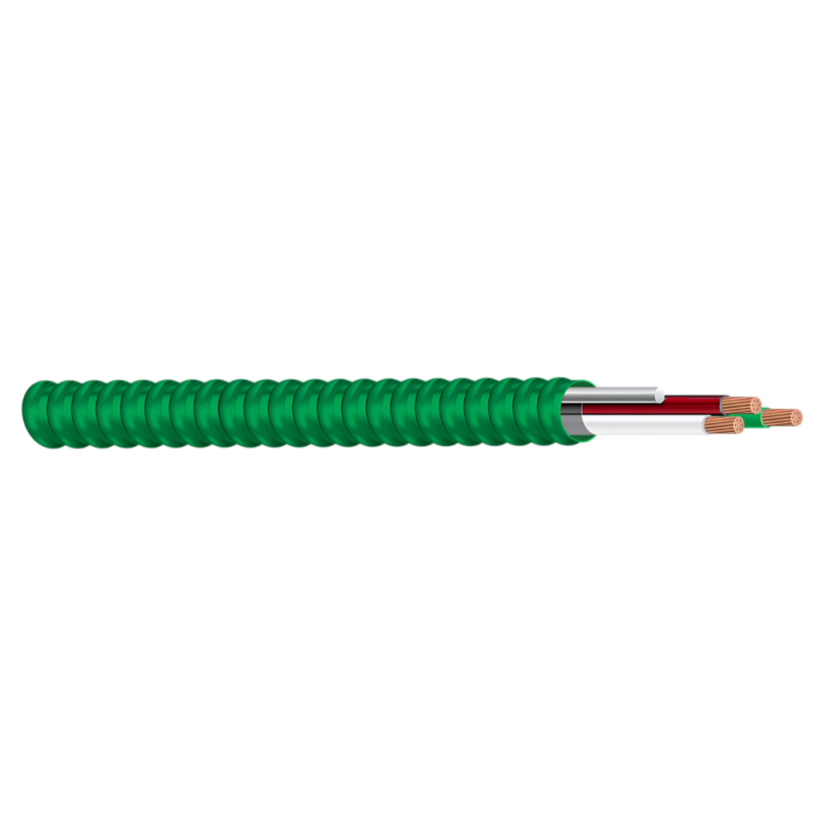

MCAP Cable - Stranded, Red/White, 12/2, 250 Feet Spooled
Werner Hospital Grade MCAP Cable
MCAP Cable - Stranded, Red/White, 12/2, 250 Feet SpooledIn Stock: 250more info
|
In Stock: 250more info
|
Product Description
Copper THHN Insulated Conductors. Full-Sized Aluminum Equipment Grounding/Bonding Conductor. UL Listed 600 Volt. Rated VW1. Lightweight Aluminum Interlocked Armor is Part of Equipment Bonding/Grounding Path. Branch, feeder and service power distribution in commercial, industrial, institutional, and multi- residential buildings. Class I Div. 2, Class II Div 2, & Class III Div. 1 Hazardous Locations.
Documents
Features
Specifications
Documents
Features
- ASTM B3 Soft or Annealed Copper Wire
- ASTM B8 Concentric-Lay-Stranded Copper Conductors
- UL 83 Thermoplastic Insulated Wires and Cables
- UL 1569 Metal-Clad Cables
- UL 1479 Standard for Safety Fire Tests of Penetration Firestops
- UL 1685 FT4 Vertical-Tray Fire Propagation and Smoke Release Test
- IEEE 1202 FT4 Flame Test (70,000) BTU/hr Vertical Tray Test
- RoHS-2 (European Directive 2011/65/EU)
- REACH - European Community Regulation
Specifications
Standards/Approvals: UL File No. 83, 1569, 1063|NFPA 70|Federal Specification A-A59544|IEEE 1202, REACH/RoHS-2 Compliant
