3M 7100004583

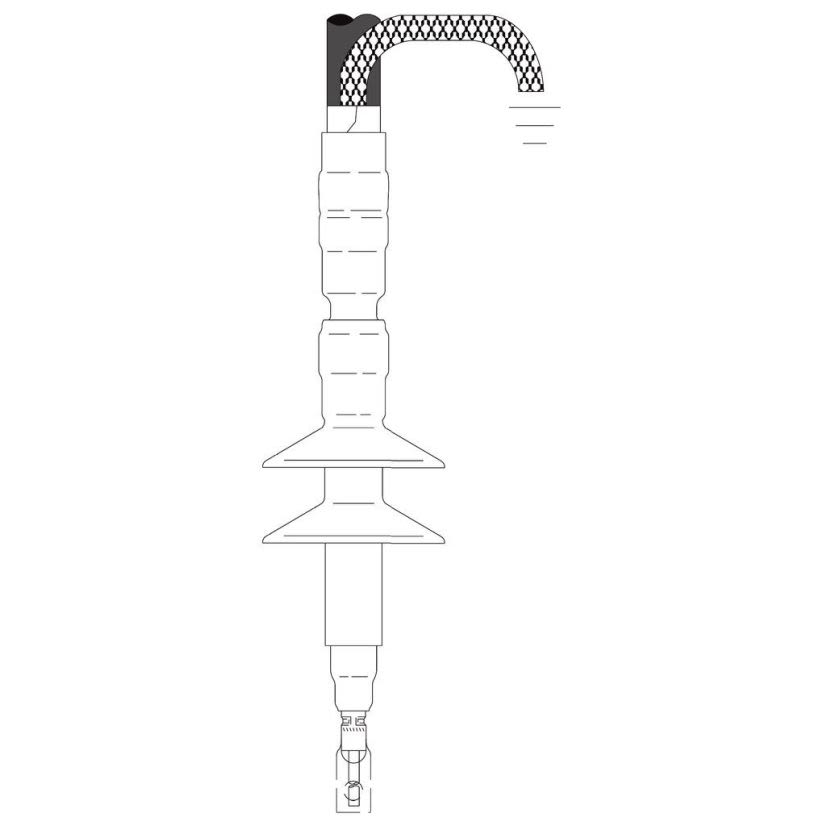

3M™ 7100004583 QT-III 7690-S-INV Cold Shrink Termination Kit, 1 Pieces, For Use With Single Core Tape Shield, UniShield® and Wire Shield Power Cable, Silicone Rubber, Black
3M 7100004583
3M™ 7100004583 QT-III 7690-S-INV Cold Shrink Termination Kit, 1 Pieces, For Use With Single Core Tape Shield, UniShield® and Wire Shield Power Cable, Silicone Rubber, BlackNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
3M™ Termination Kit, Cold Shrink, Series: QT-III 7690-S-INV, Specifications: 1-Terminal, 5 to 35 kV Voltage, 3/0 AWG to 1500 kcmil Conductor, 200 kV BIL Rated, 1.05 to 1.8 in OD Cable Insulation, 16 in L Max Installed, 1 Piece, For Use With: Single Core Tape Shield, UniShield® and Wire Shield Power Cable, Silicone Rubber, Black
Attributes
Documents
Features
Specifications
Attributes
ColorBlack
Country of OriginUnited States
Manufacturer3M
MaterialSilicone Rubber
SeriesQT-III 7690-S-INV
Suitable For Use WithSingle Core Tape Shield, UniShield and Wire Shield Power Cable
TypeCold Shrink
Type / StyleCold Shrink
Documents
Features
- High dielectric constant material regulates the distribution of electric field stress
- Integrated design allows for easier installation in limited spaces, while sealing compounds provide constant radial pressure
- Conductor size by voltage (5 kV) 700 to 1500 kcmil, (8 kV) 600 to 1250 kcmil, (15 kV) 350 to 1000 kcmil, (25/28 kV) 250 to 800 kcmil, (35 kV) 3/0 AWG to 600 kcmil
- QL2-A-4/0-600, QL2-A-350-750 compatible lug
Specifications
1-Terminal, 5 to 35 kV Voltage, 3/0 AWG to 1500 kcmil Conductor, 200 kV BIL Rated, 1.05 to 1.8 in OD Cable Insulation, 16 in L Max Installed
