3M 7010399923

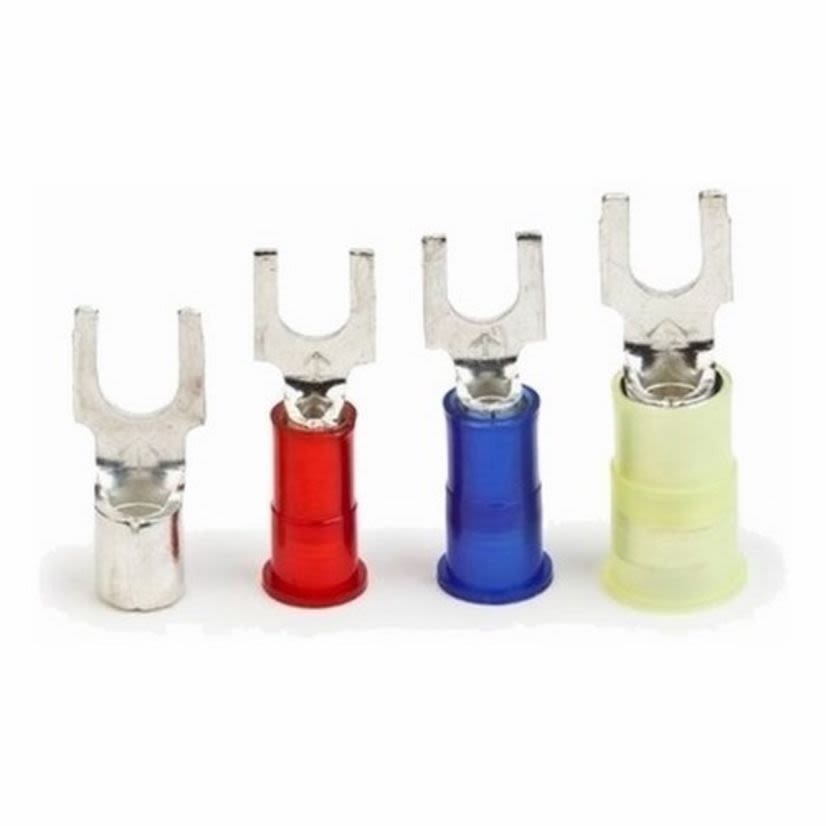

Scotchlok 7010399923 Non-Insulated Block Fork, 16 to 14 AWG Conductor, 0.65 in L, Brazed Seam Barrel, Electrolytic Copper
3M 7010399923
Scotchlok 7010399923 Non-Insulated Block Fork, 16 to 14 AWG Conductor, 0.65 in L, Brazed Seam Barrel, Electrolytic CopperNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Scotchlok, 7010399923, Block Fork, Non-Insulated, 16 to 14 AWG Conductor, #10 Stud, 0.65 in Length, Brazed Seam Barrel, 0.09 in ID x 0.25 in L Barrel, Fork Tongue, 0.3 in W x 0.03 in THK Tongue, 600 to 1000 V AC, Specifications: 1/4 in Clearance, 347 deg F, Electrolytic Copper, Tin Plated
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel Size0.09 in ID x 0.25 in L
Barrel TypeBrazed Seam
Conductor size16 to 14 AWG
Conductor TypeStranded Copper
Country of OriginUS
FinishTin Plated
Manufacturer3M
MaterialElectrolytic Copper
Stud Size#10
Temperature Rating347 deg F
Tongue Size0.3 in W x 0.03 in THK
Tongue TypeFork
TypeBlock Non-Insulated
Type / StyleBlock Non-Insulated
Voltage Rating600 to 1000 V AC
Documents
Applications
Building Wire, Fixtures or Luminaires and Signs Applications
Features
- Non insulated, brazed seam barrel ensures a secure fit and offers reliable performance
- Beveled mouth offers easy insertion of wires
- Suitable for use in a terminal block
- Electrolytic copper construction offers good conductivity and a tin plated finish resists corrosion
- Crimp termination
- Free hanging (in-line) mounting
Specifications
1/4 in Clearance
