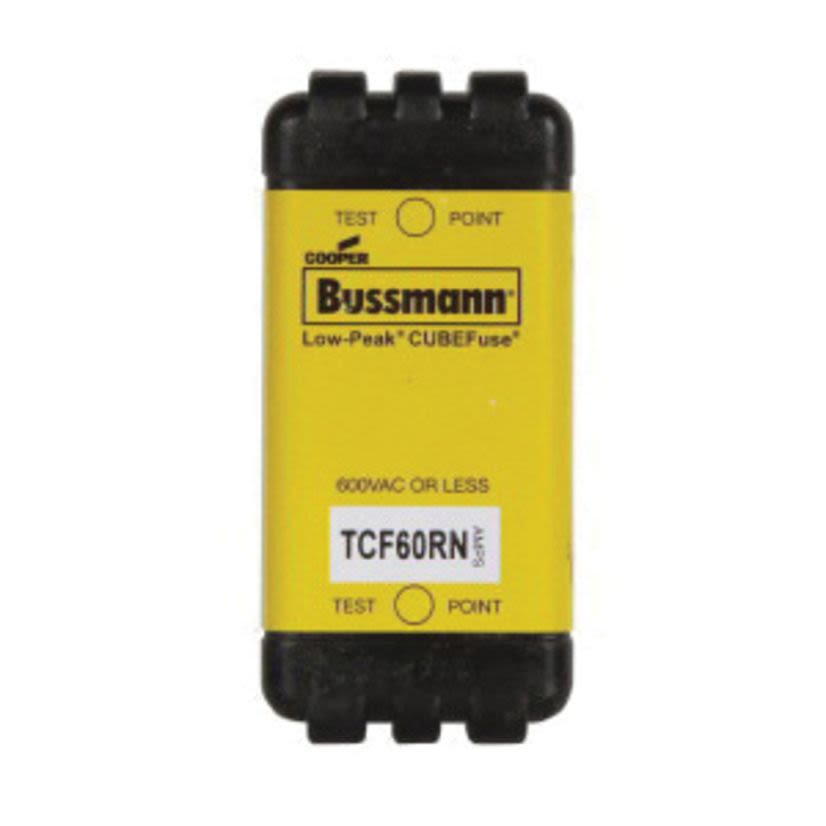

Bussmann Series TCF60RN
EATON Edison CUBEFuse TCF60RN Inrush Current Withstand Non-Indicating Time Delay Fuse, 60 A, 600 V AC/300 V DC, 300 kA at 600 VAC/100 kA at 300 VDC, 200 kA Interrupt, Class: CF, Square Blade Body
Bussmann Series TCF60RN
EATON Edison CUBEFuse TCF60RN Inrush Current Withstand Non-Indicating Time Delay Fuse, 60 A, 600 V AC/300 V DC, 300 kA at 600 VAC/100 kA at 300 VDC, 200 kA Interrupt, Class: CF, Square Blade BodyNon-stock product. Available to order - lead time may vary.
BrandBussmann Series
MFG #TCF60RN
Werner Part #4163592
UPC051712222556
Non-stock product. Available to order - lead time may vary.
BrandBussmann Series
MFG #TCF60RN
Werner Part #4163592
UPC051712222556
Product Description
EATON Edison CUBEFuse Time Delay Fuse, Inrush Current Withstand Non-Indicating, Series: TCF, 60 A, 600 V AC/300 V DC, 300 kA at 600 VAC/100 kA at 300 VDC, 200 kA Interrupt, Class: CF, 10 s at 500% Response, Radial Blade Plug-In Terminal, Chassis/DIN Rail Mount, Square Blade Body, Dual Element, Glass Filled Polyethersulfone, 2 in L x 1 in W x 2 in H Body Size
Attributes
Documents
Applications
Features
Attributes
Body Size2 in L x 1 in W x 2 in H
Body TypeSquare Blade
ClassCF
Country of OriginSri Lanka
ElementDual
Indicating/Non-IndicatingNon-Indicating
Interrupt Rating300 kA at 600 VAC/100 kA at 300 VDC, 200 kA
ManufacturerEaton
MaterialGlass Filled Polyethersulfone
Mounting TypeChassis/DIN Rail
Response Time10 s at 500%
SeriesTCF
Terminal TypeRadial Blade Plug-In
Type / StyleInrush Current Withstand
Voltage Rating600 V AC/300 V DC
Applications
Electrical Panel Boards, Machinery Disconnects, Industrial Control and Required Finger Safe System Applications
Features
- The world's first finger safe power fuse system
- Smallest footprint of any class fuse including class J, CC, T and RK
- The indicating version features easyID open fuse technology for faster troubleshooting and reduced downtime
- Faster response to damaging faults to help reduce destructive thermal and magnetic forces
- True dual element fuse construction with a minimum of 10 sec time delay at 500% of rating
- Long time delay minimizes nuisance circuit openings due to temporary overloads and transient surges
- High interrupting rating to safely interrupt faults up to 300 kA
- No venting of arc or molten metal and gases during opening
- Robust cycling and inrush current withstand
- Low let through currents under fault conditions
- Provides type 2 no damage protection for IEC motors starters when properly sized
