Bussmann Series FRS-R-150

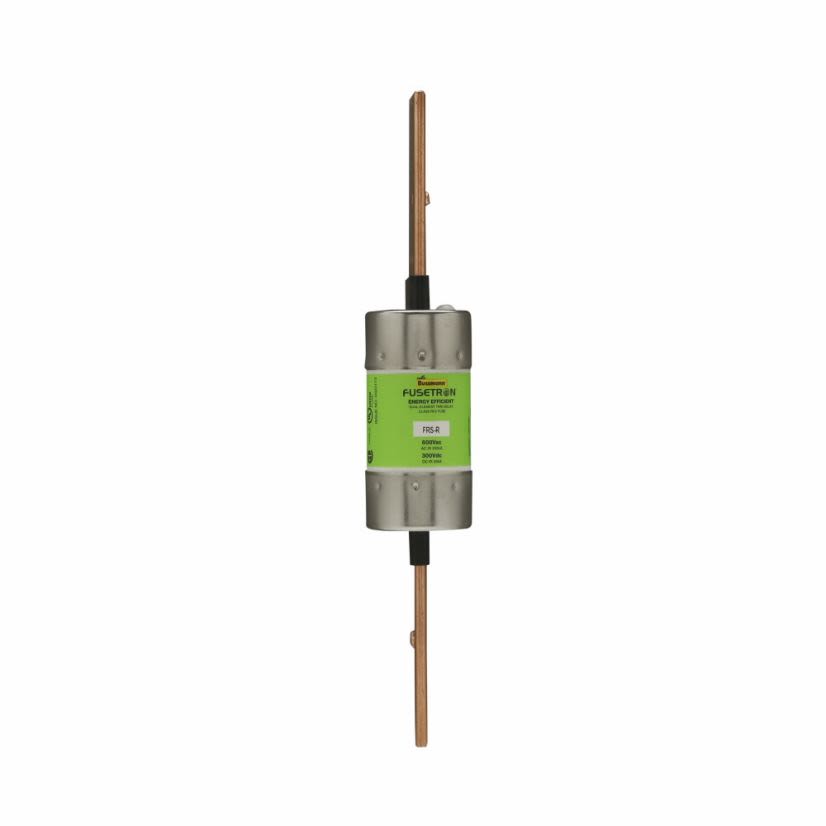

Bussmann Fusetron FRS-R-150 Current Limiting Renewable Time Delay Fuse, 150 A, 600 V AC/300 V DC, 20/200 kA Interrupt, RK5 Class, Cartridge Body
Bussmann Series FRS-R-150
Bussmann Fusetron FRS-R-150 Current Limiting Renewable Time Delay Fuse, 150 A, 600 V AC/300 V DC, 20/200 kA Interrupt, RK5 Class, Cartridge BodyIn Stock: 6more info
|
BrandBussmann Series
MFG #FRS-R-150
Werner Part #21957
UPC051712508469
In Stock: 6more info
|
BrandBussmann Series
MFG #FRS-R-150
Werner Part #21957
UPC051712508469
Product Description
Bussmann Fusetron Time Delay Fuse, Current Limiting Renewable, Series: FRS-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 150 A, 600 V AC/300 V DC, 20/200 kA Interrupt, Class: RK5, 10 s at 500% Response, Blade Terminal, Holder Mount, Cartridge Body Type, Dual Element, Fiberglass, 1.61 in Dia x 9.63 in L Body Size
Attributes
Documents
Applications
Features
Specifications
Attributes
Body Size1.61 in Dia x 9.63 in L
Body TypeCartridge
ClassRK5
Country of OriginMX
ElementDual
GTIN00051712508469
Indicating/Non-IndicatingNon-Indicating
Interrupt Rating20/200 kA
ManufacturerEaton
MaterialFiberglass
Mounting TypeHolder
Rejection/Non-RejectionRejection
Response Time10 s at 500%
SeriesFRS-R
Terminal TypeBlade
Type / StyleCurrent Limiting Renewable
Voltage Rating600 V AC/300 V DC
Documents
Applications
Combination Starters, Machinery Disconnects, Motor Control Centers and Power Panelboard Applications, Safety and Security Systems
Features
- Provides motor overload, ground fault and short circuit protection
- When used in circuits subject to surge currents such as those caused by motors, transformers and other inductive components, these fuses can be sized close to full-load amps to give maximum over current protection
- The time delay feature makes it possible to use fuse amperage ratings which are much smaller than those of non-time delay fuses
- Considerable cost savings occur by permitting the use of smaller size switches, panels and fuses themselves
- Provides a good deg of short circuit protection (greater current limitation) to help protect downstream components from high fault currents
- Gives motor running back-up protection to motors without extra cost
- Helps protect motors against burnout from overloads and single phasing when sized properly
- Simplifies and improves blackout prevention (selective co-ordination ratios)
- Dual element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short circuit and overload protection
Specifications
Standard/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|CE Certified|UL 248-12 File No. E4273 Guide JDDZ|CSA File No. 53787 C22.2 No. 248.12 Class 1422-02
