Sta-Kon F2045

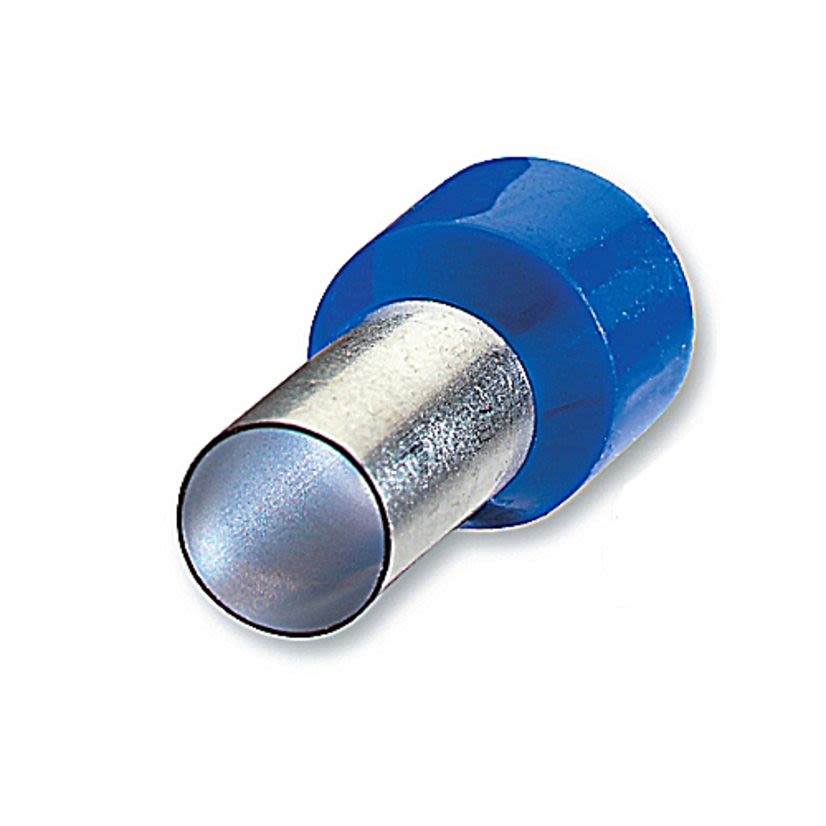

Sta-Kon F2045 F Series Insulated Wire Ferrule, 6 AWG Stranded Copper Conductor, 0.906 in L, Copper, Blue
Sta-Kon F2045
Sta-Kon F2045 F Series Insulated Wire Ferrule, 6 AWG Stranded Copper Conductor, 0.906 in L, Copper, BlueNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Sta-Kon Wire Ferrule, Insulated, Series: F Series, Stranded Copper Conductor, 6 AWG Conductor, 0.906 in Length, Short Barrel, 0.346 in Dia Barrel, 300 V AC, Specifications: 0.236 in ID x 0.472 in L x 0.008 in THK Pin, 0.346 in Dia Base, 105 deg C, Copper, Tin Coated, Blue
Attributes
Documents
Features
Specifications
Attributes
Barrel Size0.346 in Dia
Barrel TypeShort
ColorBlue
Conductor size6 AWG
Conductor TypeStranded Copper
Country of OriginDE
FinishTin Coated
ManufacturerABB
MaterialCopper
SeriesF Series
Temperature Rating105 deg C
TypeInsulated
Type / StyleInsulated
Voltage Rating300 V AC
Features
- Polypropylene insulated
- Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks
- Made of high conductivity copper
- Fraying and breaking of wire strands is prevented and the possibility of an unreliable connection is minimized
- Insulated ferrules prevent conductor breakage due to bending, wire stress or vibration, while facilitating wire insertions into the terminal block clamp
- Ferrules are the preferred alternative to twisting wire stands or tinning the wire end before terminating into a terminal block
- Ferrules are thin-walled copper tubes, which are mechanically crimped onto the ends of stranded wires
- Meets emerging global standards, requiring wire to metric-style terminal block installations to be terminated with a "pin" style terminal
- ERG4 recommended tool
Specifications
0.236 in ID x 0.472 in L x 0.008 in THK Pin, 0.346 in Dia Base
