Sta-Kon F2039

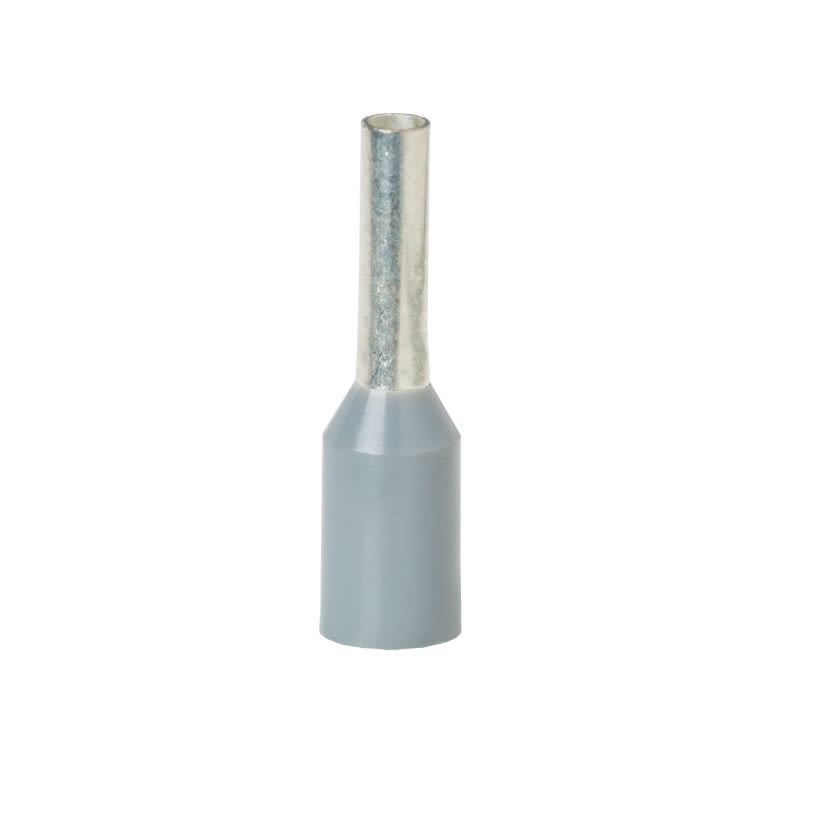

Sta-Kon F2039 F Series Insulated Wire Ferrule, 12 AWG Stranded Copper Conductor, 0.787 in L, Copper, Gray
Sta-Kon F2039
Sta-Kon F2039 F Series Insulated Wire Ferrule, 12 AWG Stranded Copper Conductor, 0.787 in L, Copper, GrayNon-stock product. Available to order - lead time may vary.
BrandSta-Kon
MFG #F2039
Werner Part #1302886
UPC786210335421
Non-stock product. Available to order - lead time may vary.
BrandSta-Kon
MFG #F2039
Werner Part #1302886
UPC786210335421
Product Description
Sta-Kon Wire Ferrule, Insulated, Series: F Series, Stranded Copper Conductor, 12 AWG Conductor, 0.787 in Length, Standard Barrel, 0.189 in Dia Barrel, 300 V AC, Specifications: 0.114 in ID x 0.472 in L x 0.008 in THK Pin, 0.189 in Dia Base, 105 deg C, Copper, Tin Coated, Gray
Attributes
Documents
Features
Specifications
Attributes
Barrel Size0.189 in Dia
Barrel TypeStandard
ColorGray
Conductor size12 AWG
Conductor TypeStranded Copper
Country of OriginDE
FinishTin Coated
ManufacturerABB
MaterialCopper
SeriesF Series
Temperature Rating105 deg C
TypeInsulated
Type / StyleInsulated
Voltage Rating300 V AC
Features
- Polypropylene insulated
- Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks
- Made of high conductivity copper
- Fraying and breaking of wire strands is prevented and the possibility of an unreliable connection is minimized
- Insulated ferrules prevent conductor breakage due to bending, wire stress or vibration, while facilitating wire insertions into the terminal block clamp
- Ferrules are the preferred alternative to twisting wire stands or tinning the wire end before terminating into a terminal block
- Ferrules are thin-walled copper tubes, which are mechanically crimped onto the ends of stranded wires
- Meets emerging global standards, requiring wire to metric-style terminal block installations to be terminated with a "pin" style terminal
- T1, T3 and ERG4 recommended tools
Specifications
0.114 in ID x 0.472 in L x 0.008 in THK Pin, 0.189 in Dia Base
