Sta-Kon 10RC-516X

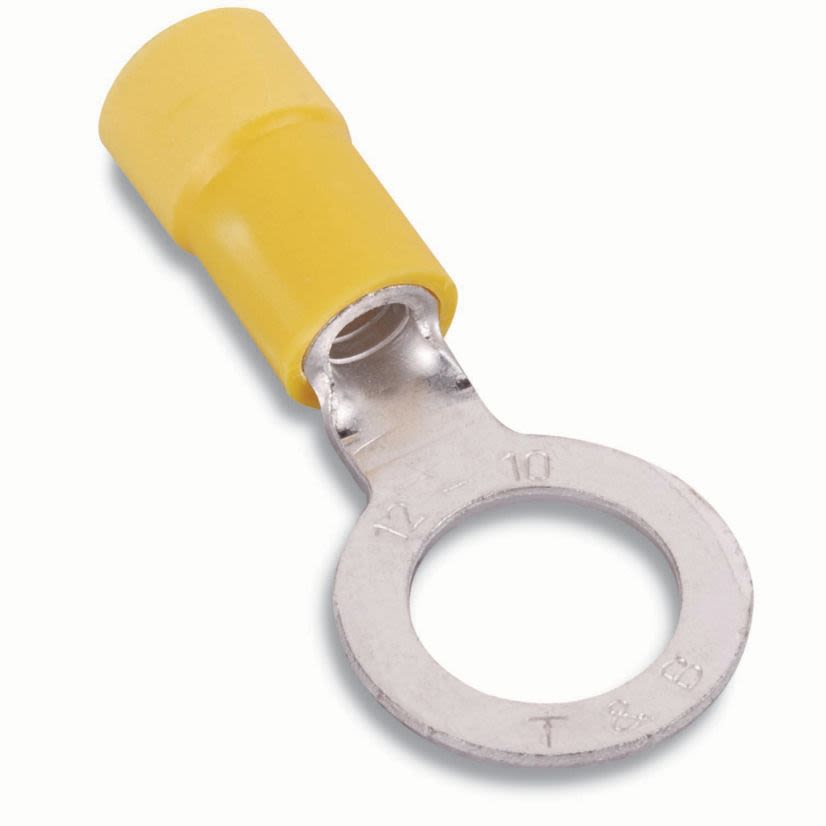

Sta-Kon 10RC-516X RC Series Expanded Insulated Ring Terminal, 12 to 10 AWG Conductor, 1.17 in L, Brazed Seam Barrel, Copper, Yellow
Sta-Kon 10RC-516X
Sta-Kon 10RC-516X RC Series Expanded Insulated Ring Terminal, 12 to 10 AWG Conductor, 1.17 in L, Brazed Seam Barrel, Copper, YellowIn Stock: 50more info
|
In Stock: 50more info
|
Product Description
Sta-Kon Ring Terminal, Expanded Insulated, Series: RC Series, 12 to 10 AWG Conductor, 5/16 in Stud, 1.17 in Length, Brazed Seam Barrel, Ring Tongue, 0.5 in W x 0.04 in THK Tongue, 600 V AC, 1/4 in Dia Maximum Insulation, 0.37 in Clearance, Vinyl Insulation, 105 deg C, Copper, Tin Coated, Yellow
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel TypeBrazed Seam
ColorYellow
Conductor size12 to 10 AWG
Country of OriginUS
FinishTin Coated
ManufacturerABB
MaterialCopper
SeriesRC Series
Stud Size5/16 in
Temperature Rating105 deg C
Tongue Size0.5 in W x 0.04 in THK
Tongue TypeRing
TypeExpanded Insulated
Type / StyleExpanded Insulated
Voltage Rating600 V AC
Applications
For WT145C, WT2000, WT112M, ERG4001 and ERG4003 tools
Features
- Suffix X indicate an expanded insulation grip, means a wider wire entry to accommodate heavy wall insulation, Self-insulated with a PVC (vinyl) insulation sleeve of extra length to give protection and relieve bending stress at wire flex point
- Brazed seam barrel that is serrated to obtain high pullout value
- Made of copper and has electro-tin plating for corrosion-resistance
- Ring terminals won't fall-free even if the mounting screw loosens
- 50 pieces/pack
Specifications
1/4 in Dia Maximum Insulation, 0.37 in Clearance, Vinyl Insulation
