Sta-Kon RC10-55PT

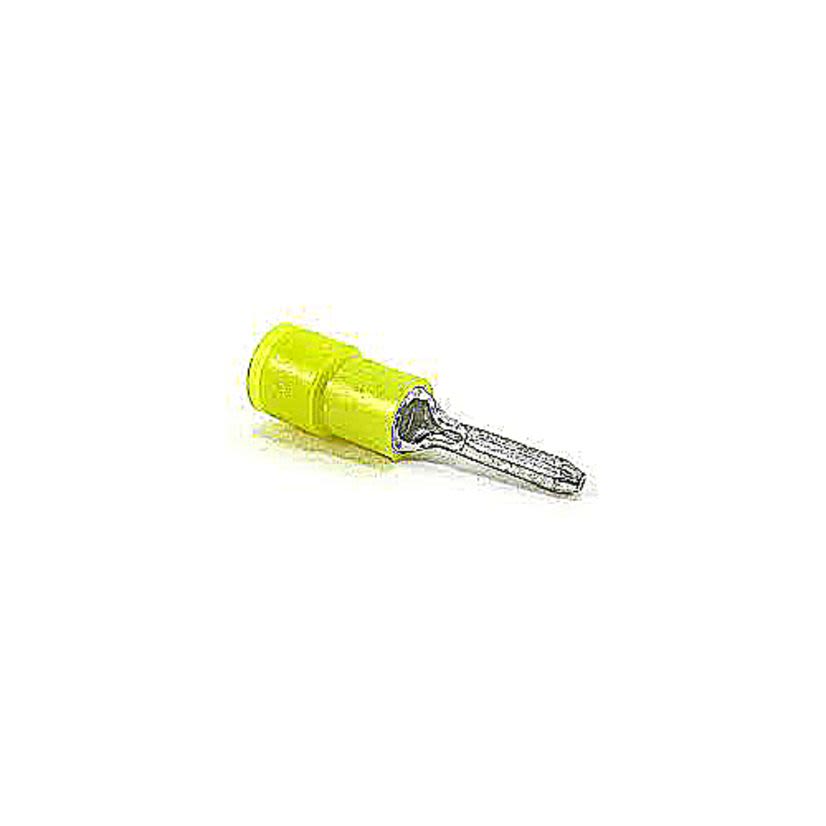

Sta-Kon RC10-55PT RC Series Insulated Pin Terminal, 12 to 10 AWG Conductor, 0.106 in Dia x 0.39 in L Pin, Copper, Yellow
Sta-Kon RC10-55PT
Sta-Kon RC10-55PT RC Series Insulated Pin Terminal, 12 to 10 AWG Conductor, 0.106 in Dia x 0.39 in L Pin, Copper, YellowNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Sta-Kon Pin Terminal, Insulated, Series: RC Series, 12 to 10 AWG Conductor, 0.106 in Pin Diameter, 0.39 in Pin Length, 300 V AC, Specifications: 0.04 in Stock THK, Copper, 105 deg C, 1.06 in Overall Length, Yellow
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorYellow
Conductor size12 to 10 AWG
Country of OriginUS
ManufacturerABB
MaterialCopper
Overall Length1.06 in
Pin Length0.39 in
SeriesRC Series
Temperature Rating105 deg C
TypeInsulated
Type / StyleInsulated
Voltage Rating300 V AC
Applications
For pin style terminal blocks
Features
- Provides an easy and effective way to terminate stranded wire into European/metric-style terminal blocks
- Nylon insulated
- ERG4001 recommended tool
- Designed to prevent shorting, wire strand loss and/or wire pullout resulting from improper termination of stranded wire
- Designed to meet emerging global standards which require wire to metric-style terminal block installations be terminated with a "pin" style terminal
- Electro-tin plated finish
Specifications
0.04 in Stock THK
