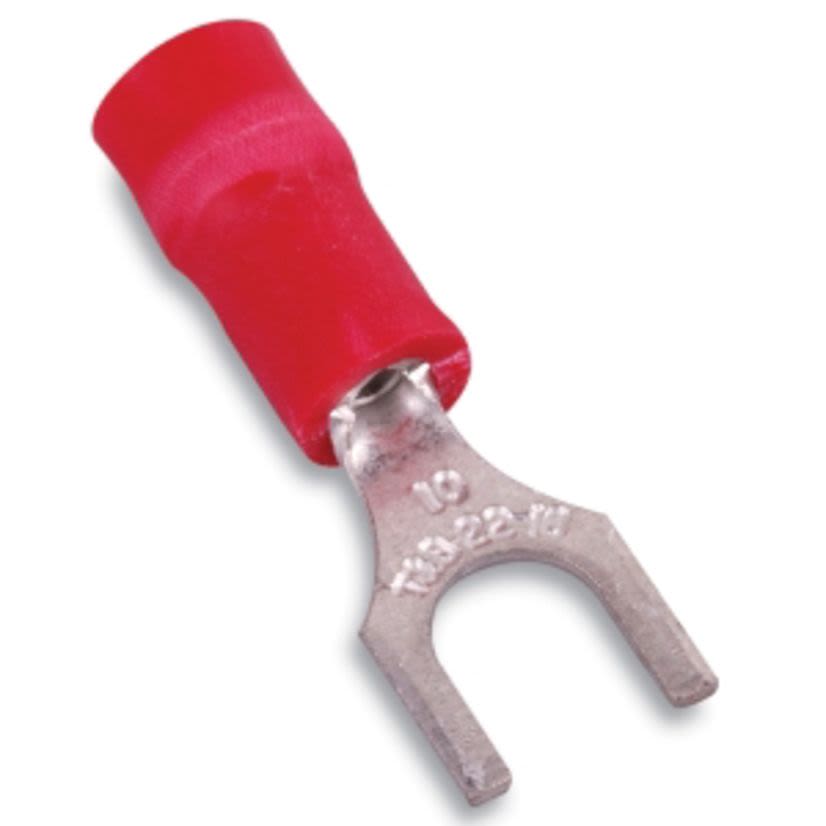

Sta-Kon RA18-10F
Sta-Kon RA18-10F RA Series Insulated Fork Terminal, 22 to 16 AWG Conductor, 0.83 in L, Brazed Seam/Serrated Barrel, Copper, Red
Sta-Kon RA18-10F
Sta-Kon RA18-10F RA Series Insulated Fork Terminal, 22 to 16 AWG Conductor, 0.83 in L, Brazed Seam/Serrated Barrel, Copper, RedIn Stock: 1000more info
|
In Stock: 1000more info
|
Product Description
Sta-Kon Fork Terminal, Insulated, Series: RA Series, 22 to 16 AWG Conductor, #10 Stud, 0.83 in Length, Brazed Seam/Serrated Barrel, Fork Tongue, 0.25 in W x 0.02 in THK Tongue, 600 V AC, Specifications: 0.136 in Dia Maximum Insulation, 1/4 in Clearance, Nylon Insulation, 105 deg C, Copper, Electroplated Tin, Red
Attributes
Documents
Features
Specifications
Attributes
Barrel TypeBrazed Seam/Serrated
ColorRed
Conductor size22 to 16 AWG
Country of OriginUS
FinishElectroplated Tin
ManufacturerABB
MaterialCopper
SeriesRA Series
Stud Size#10
Temperature Rating105 deg C
Tongue Size0.25 in W x 0.02 in THK
Tongue TypeFork
TypeInsulated
Type / StyleInsulated
Voltage Rating600 V AC
Features
- Nylon insulated with inner bronze insulation grip sleeve lengthens flex radius of conductor and eliminates conductor creep
- Brazed seam barrel is serrated for high pull-out value
- Nylon jacket is Color coded
- WT112M, WT145C, WT2000, ERG4001, ERG4003 recommended tools
Specifications
0.136 in Dia Maximum Insulation, 1/4 in Clearance, Nylon Insulation
