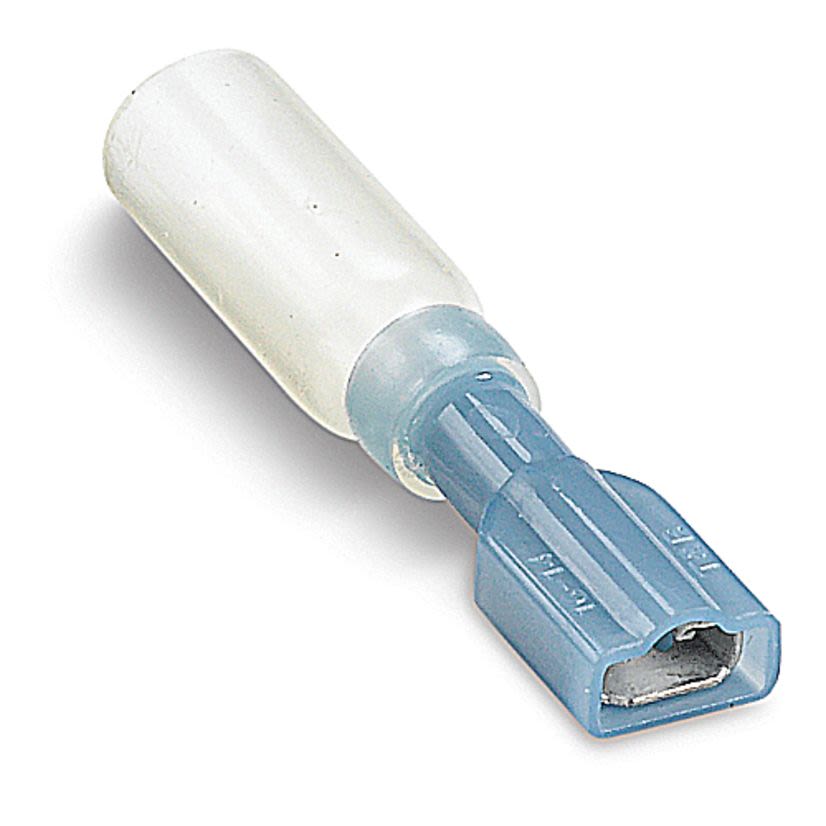

Sta-Kon RBS14-250AX
Sta-Kon RBS14-250AX Female Disconnect, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brazed Seam Barrel, Brass, Blue, Fully Insulated
Sta-Kon RBS14-250AX
Sta-Kon RBS14-250AX Female Disconnect, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brazed Seam Barrel, Brass, Blue, Fully InsulatedNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Sta-Kon Female Disconnect, Series: 250, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brazed Seam Barrel, Crimp Terminal, 600 V AC, 0.2 in Dia Maximum Insulation, 105 deg C, Brass, Blue, Electroplated Tin, 1.77 in L, Insulated: Fully Insulated
Attributes
Documents
Features
Specifications
Attributes
Barrel TypeBrazed Seam
ColorBlue
Conductor size16 to 14 AWG
Country of OriginUS
Dimensions1.77 in L
FinishElectroplated Tin
InsulatedFully Insulated
ManufacturerABB
MaterialBrass
Series250
Tab Size0.25 in W x 0.032 in THK
Temperature Rating105 deg C
Terminal TypeCrimp
Voltage Rating600 V AC
Features
- Heat shrinkable polyolefin
- Unique construction of the female disconnect offers long term dependability
- Funnel entry insulators enable easier inserting of wire into barrel
- Brazed seam serrated barrel provides maximum tensile strength
- Suitable for use with WT1255, ERG4255 tools
- Color-coded for easy installation
Specifications
0.2 in Dia Maximum Insulation
