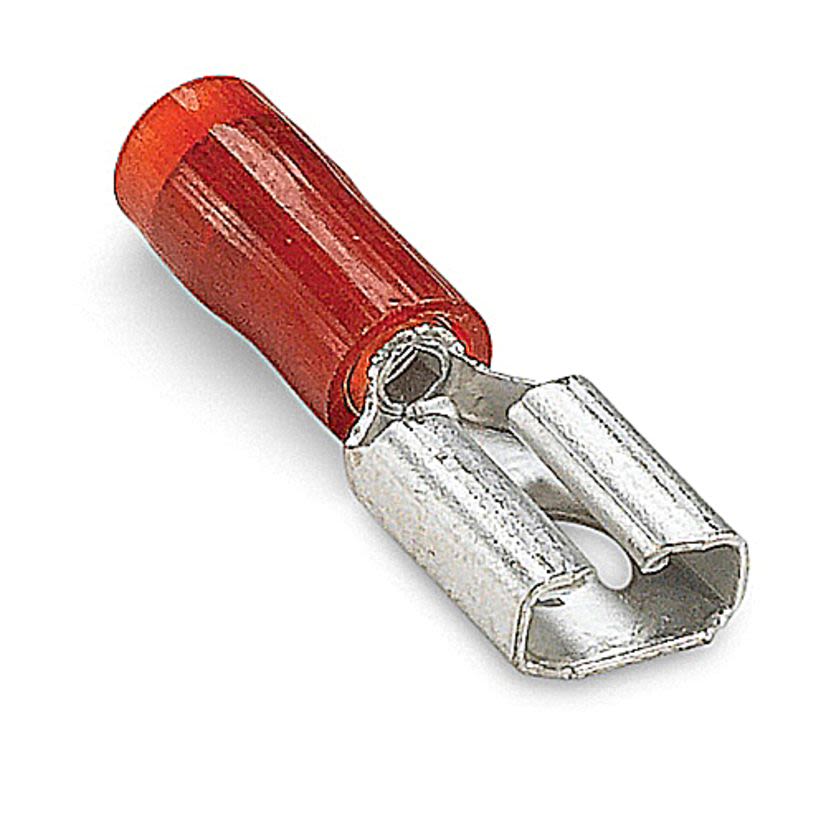

Sta-Kon RA18-250F
Sta-Kon RA18-250F Female Disconnect, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brazed Seam Barrel, Brass, Red, Insulated
Sta-Kon RA18-250F
Sta-Kon RA18-250F Female Disconnect, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brazed Seam Barrel, Brass, Red, InsulatedNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Sta-Kon Female Disconnect, Series: 250, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brazed Seam Barrel, Crimp Terminal, 600 V AC, 0.136 in Dia Maximum Insulation, 105 deg C, Brass, Red, Electroplated Tin, 0.91 in L x 0.29 in W, Insulated: Insulated
Attributes
Documents
Features
Specifications
Attributes
Barrel TypeBrazed Seam
ColorRed
Conductor size16 to 14 AWG
Country of OriginUS
Dimensions0.91 in L x 0.29 in W
FinishElectroplated Tin
InsulatedInsulated
ManufacturerABB
MaterialBrass
Series250
Tab Size0.25 in W x 0.032 in THK
Temperature Rating105 deg C
Terminal TypeCrimp
Type / StyleDisconnects
Voltage Rating600 V AC
Features
- Nylon insulated
- Unique construction of the female disconnect offers long term dependability
- Funnel entry insulators enable easier inserting of wire into barrel
- Brazed seam serrated barrel provides maximum tensile strength
- Suitable for use with WT145C, WT2000, WT112M, ERG4001, ERG4003 tools
- Color-coded for easy installation
Specifications
0.136 in Dia Maximum Insulation
