Sta-Kon 18RAD-183

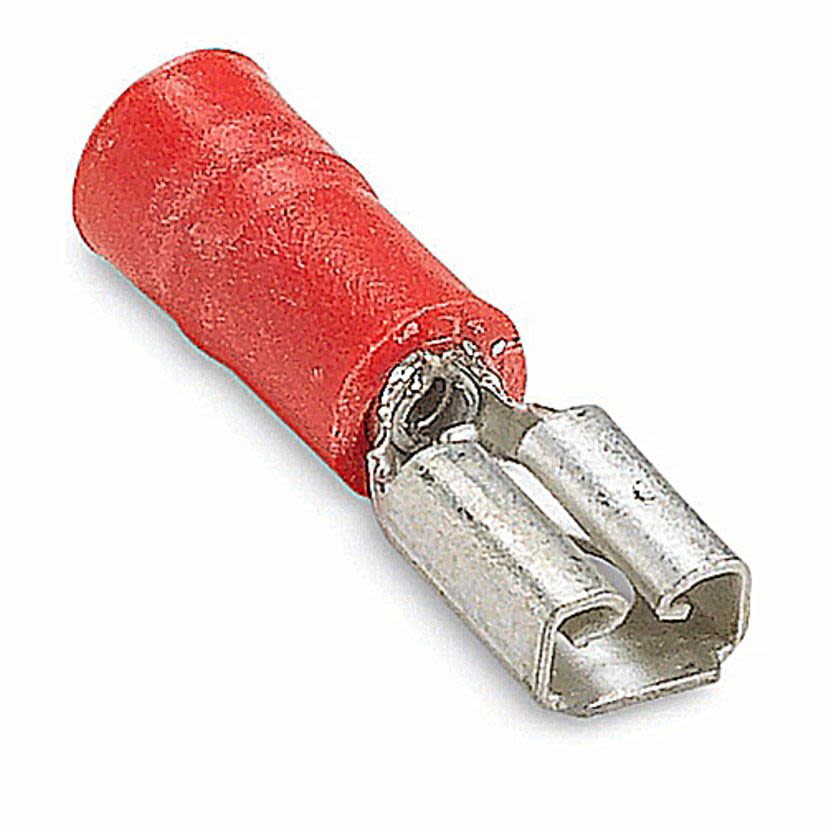

Sta-Kon 18RAD-183 187 Female Disconnect, 22 to 18 AWG Conductor, 0.187 in W x 0.032 in THK Tab, Internal Serration Long Barrel, Brass, Red, Insulated
Sta-Kon 18RAD-183
Sta-Kon 18RAD-183 187 Female Disconnect, 22 to 18 AWG Conductor, 0.187 in W x 0.032 in THK Tab, Internal Serration Long Barrel, Brass, Red, InsulatedNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Sta-Kon Female Disconnect, Series: 187, 22 to 18 AWG Conductor, 0.187 in W x 0.032 in THK Tab, Internal Serration Long Barrel, Crimp Terminal, 600 V AC, 0.15 in Dia Maximum Insulation, 0.03 in THK Stock, 105 deg C, Brass, Red, Electroplated Tin, 0.85 in L x 0.23 in W, Insulated: Insulated
Attributes
Documents
Features
Specifications
Attributes
Barrel TypeInternal Serration Long
ColorRed
Conductor size22 to 18 AWG
Country of OriginUS
Dimensions0.85 in L x 0.23 in W
FinishElectroplated Tin
InsulatedInsulated
ManufacturerABB
MaterialBrass
Series187
Tab Size0.187 in W x 0.032 in THK
Temperature Rating105 deg C
Terminal TypeCrimp
Type / StyleDisconnects
Voltage Rating600 V AC
Features
- Vinyl insulated
- Unique construction of the female disconnect offers long term dependability
- Funnel entry insulators enable easier inserting of wire into barrel
- Internal barrel serrations and long barrel provide for maximum tensile strength
- Suitable for use with WT145C, WT2000, WT112M, ERG4001, ERG4003, ERG4001 tools
- Color-coded for easy installation
- Quick, reliable method of connection to terminal blocks and boards without the use of tools
Specifications
0.15 in Dia Maximum Insulation, 0.03 in THK Stock
