Sta-Kon 14RB-2577

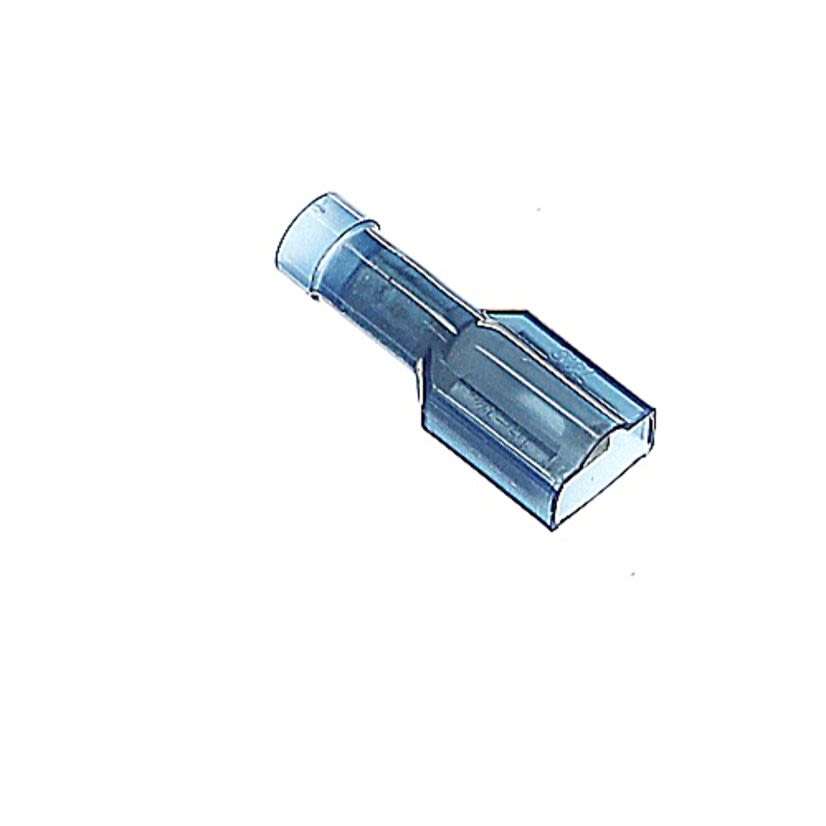

Sta-Kon 14RB-2577 250 Female Disconnect, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brazed Seam Barrel, Brass, Blue, Fully Insulated
Sta-Kon 14RB-2577
Sta-Kon 14RB-2577 250 Female Disconnect, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brazed Seam Barrel, Brass, Blue, Fully InsulatedIn Stock: 2250more info
|
In Stock: 2250more info
|
Product Description
Sta-Kon Female Disconnect, Series: 250, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brazed Seam Barrel, Crimp Terminal, 600 V AC, 0.185 in Dia Maximum Insulation, 0.03 in THK Stock, 105 deg C, Brass, Blue, Electroplated Tin, 1.01 in L x 0.38 in W, Insulated: Fully Insulated
Attributes
Documents
Features
Specifications
Attributes
Barrel TypeBrazed Seam
ColorBlue
Conductor size16 to 14 AWG
Country of OriginUS
Dimensions1.01 in L x 0.38 in W
FinishElectroplated Tin
InsulatedFully Insulated
ManufacturerABB
MaterialBrass
Series250
Tab Size0.25 in W x 0.032 in THK
Temperature Rating105 deg C
Terminal TypeCrimp
Type / StyleDisconnects
Voltage Rating600 V AC
Features
- Nylon fully insulated
- Unique construction of the female disconnect offers long term dependability
- Funnel entry insulators enable easier inserting of wire into barrel
- Brazed seam serrated barrel provides maximum tensile strength
- Suitable for use with WT145C, WT2000, WT112M, ERG4001, ERG4003 tools
- Color-coded for easy installation
Specifications
0.185 in Dia Maximum Insulation, 0.03 in THK Stock
