Sta-Kon 2RB14

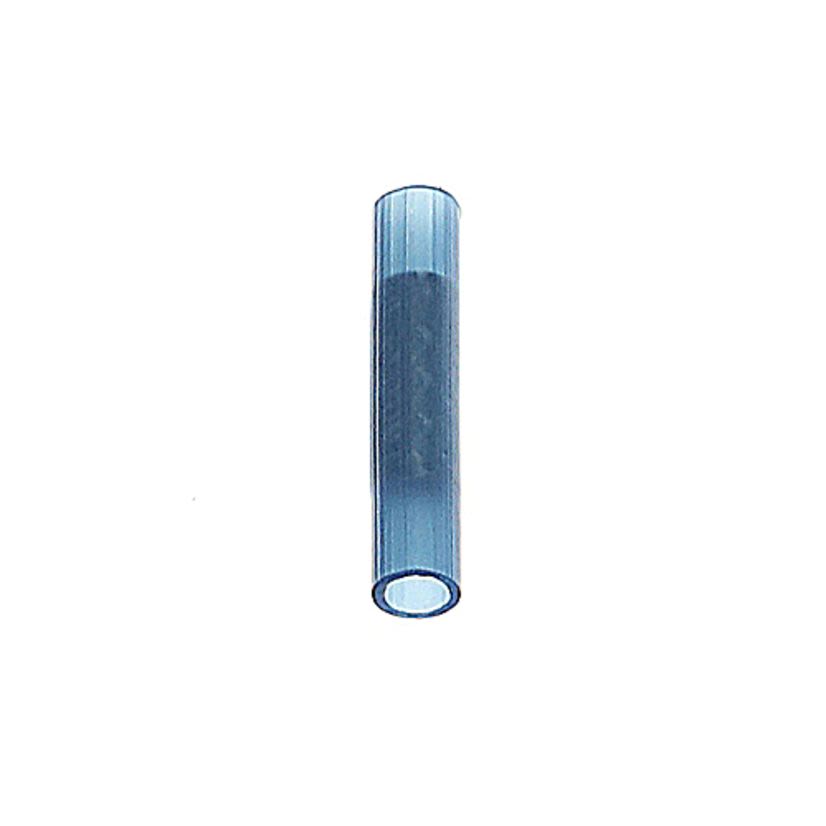

Sta-Kon 2RB14 Nylon Insulated Butt Splice Connector, 16 to 14 AWG Conductor, 1.19 in L, Copper, Blue
Sta-Kon 2RB14
Sta-Kon 2RB14 Nylon Insulated Butt Splice Connector, 16 to 14 AWG Conductor, 1.19 in L, Copper, BlueIn Stock: 400more info
|
In Stock: 400more info
|
Product Description
Sta-Kon Butt Splice Connector, Nylon Insulated, Series: RB Series, 16 to 14 AWG Conductor, 1.19 in Length, 600 V AC, Specifications: 0.148 in Maximum Insulation, 105 deg C, Copper, Blue, Electro-TiN Plated, 0.21 in W Dimensions
Attributes
Documents
Features
Specifications
Attributes
ColorBlue
Conductor size16 to 14 AWG
Country of OriginUS
Dimensions0.21 in W
FinishElectro-TiN Plated
ManufacturerABB
MaterialCopper
SeriesRB Series
Temperature Rating105 deg C
TypeNylon Insulated
Type / StyleNylon Insulated
Voltage Rating600 V AC
Features
- Nylon insulated with electro tin plated
- Wires are laid side by side in the connector and the splice connection is complete in one crimp
- Color coded according to wire size
- Nylon insulated splices meet or exceed the requirements of MIL-T-7928
- These splices are color coded according to wire size
Specifications
0.148 in Maximum Insulation
